Items 11 and 21: Brake Booster Assembly Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the brake booster push rod.
    1. Remove the redundant self-locking pin cover.
    2. Remove the self-locking pin.
    3. Position the brake stoplamp switch aside.
    4. Remove the brake stoplamp switch bushing.
    5. Disconnect the brake booster push rod.

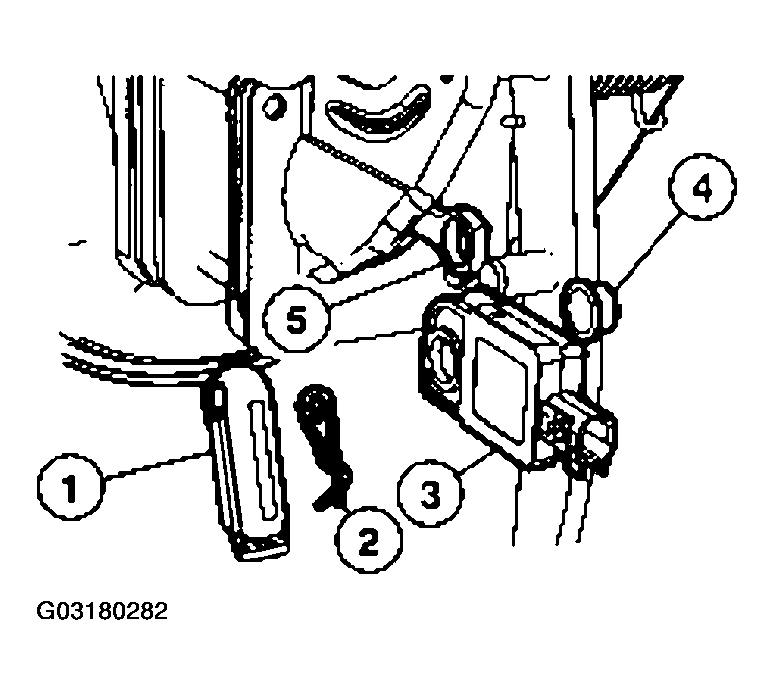

    Fig 1: Disconnecting Brake Booster Push Rod
    G03180282Courtesy of FORD MOTOR CO.
