Item 10: Wheel Stud Installation Note
WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

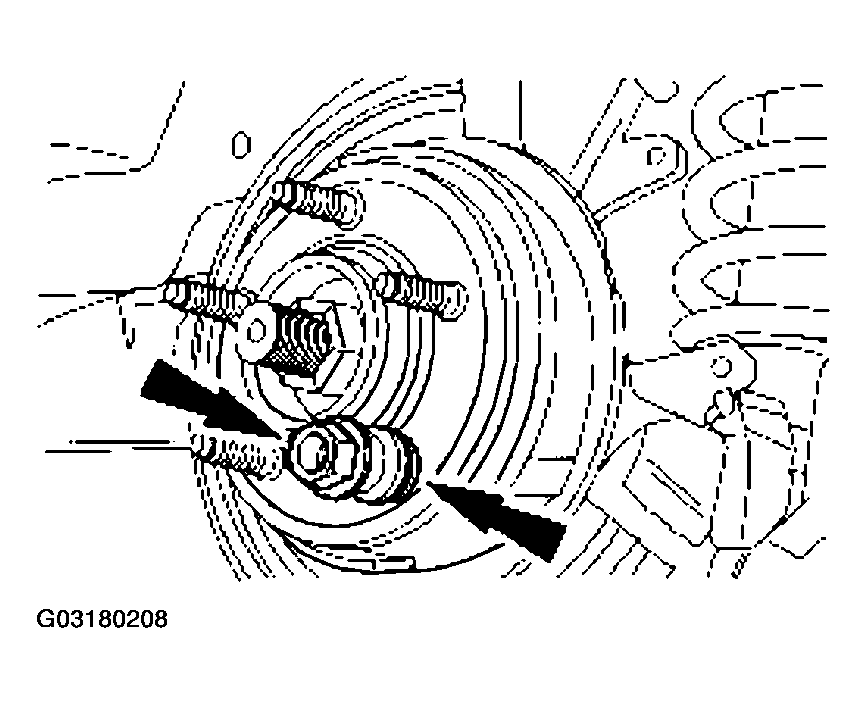

- Install washers and a new wheel nut on the wheel stud and tighten the nut until the stud seats against the flange.
- Discard the wheel nut and washers.
CAUTION:
Do not use power tools to install the wheel stud. The serrations on the stud can be stripped.
NOTE:
To position the wheel stud in the wheel hub, align the flat area on the wheel stud with the recessed area of the wheel knuckle.
NOTE:
Do not use the wheel nut that came with the vehicle.
