Item 10: Tie-Rod End-to-Wheel Knuckle Nut Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not use a hammer to separate the tie-rod from the wheel knuckle or damage to the wheel knuckle can result.

CAUTION: Do not damage the tie-rod boot while installing the special tool.

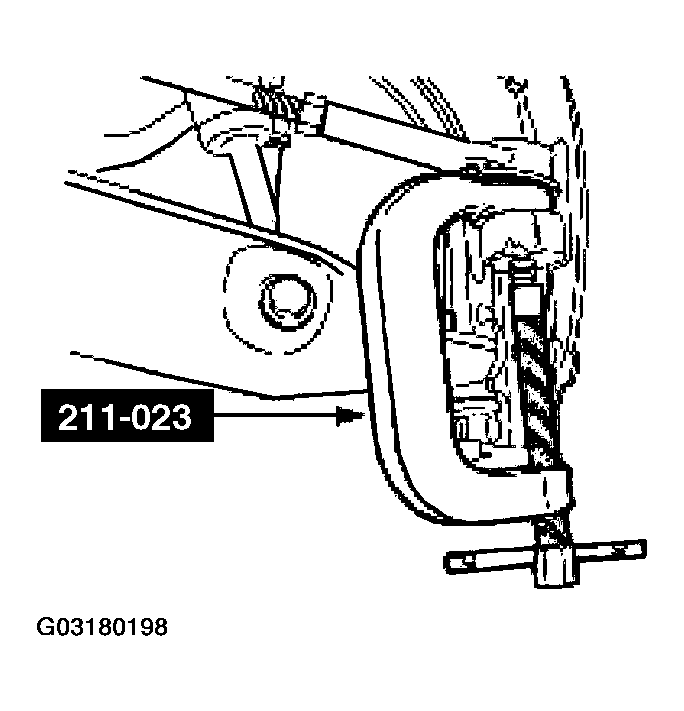

Fig 1: Separating Tie-Rod From Wheel Knuckle Using Special Tool

Courtesy of FORD MOTOR CO.

Using the special tool, separate the tie-rod from the wheel knuckle.
