Special Tool(s)

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Special Tool
G03180214Courtesy of FORD MOTOR CO.
CAUTION: Use only special tool 204-354 anytime tire pressures are measured to be sure that accurate values are obtained.
CAUTION: Place the air chuck straight on the valve stem to inflate the tire. Do not cock the air chuck during the inflation cycle. Doing so can damage the valve stem and cause air leaks.
CAUTION: Ford recommends using a round head air chuck on tire pressure sensors; it is not recommended to use air chucks with long shanks.

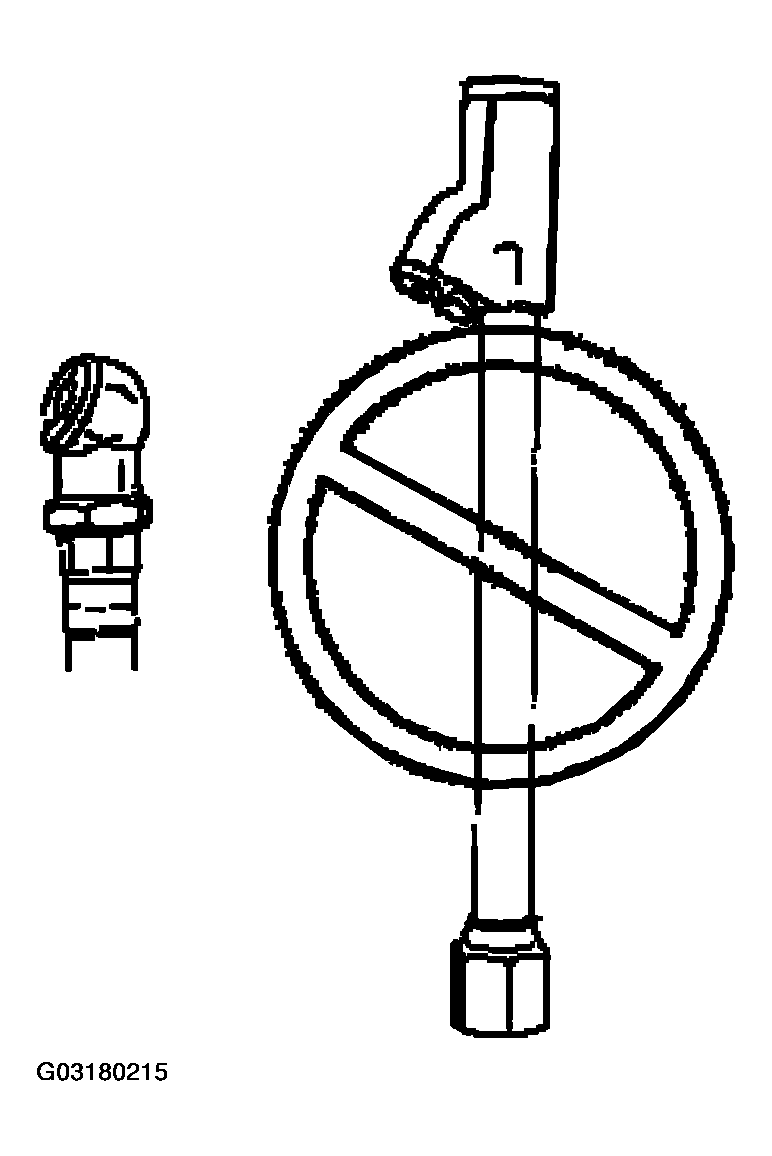

Fig 2: Caution For Not Using Air Chucks With Long Shanks
G03180215Courtesy of FORD MOTOR CO.
