Removal and Installation: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the components in the order indicated in the following illustration and table.

NOTE: Inspect the bushings for wear or damage. Install new bushings as necessary.

NOTE: Install new stabilizer link nuts and stabilizer bar bolts.

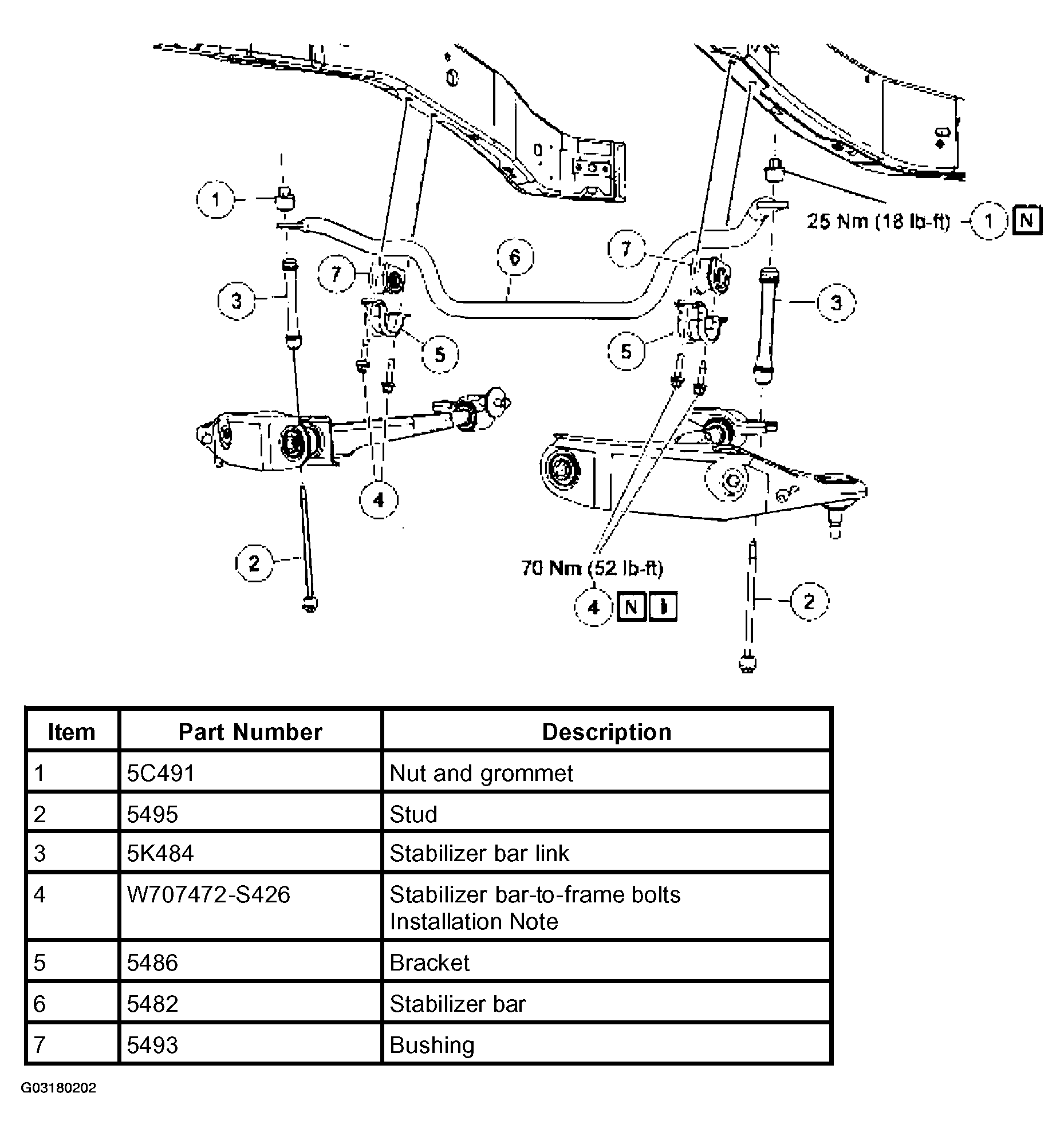

Fig 1: Identifying Stabilizer Bar And Link (Front)

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
