Ride Height

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

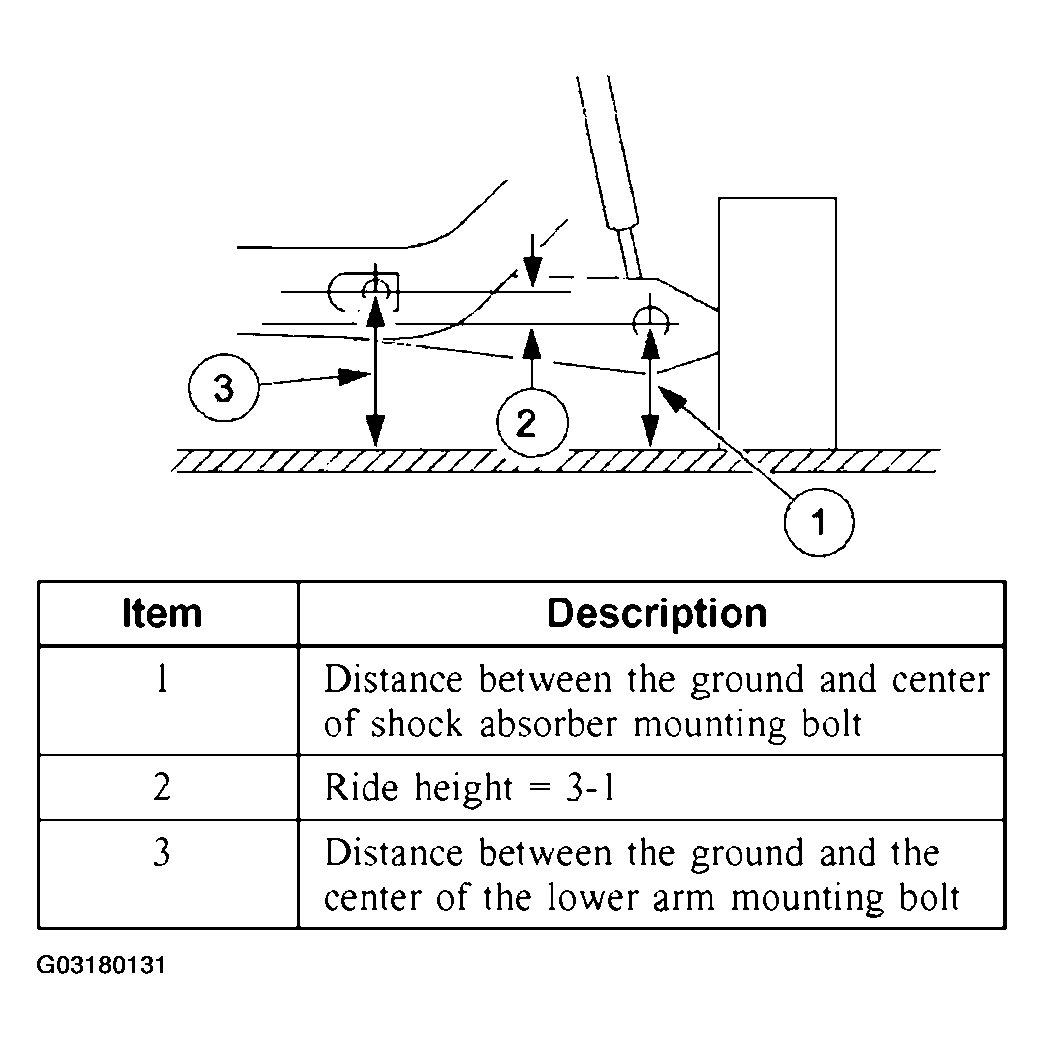

Fig 1: Measuring Front Ride Height
G03180131Courtesy of FORD MOTOR CO.

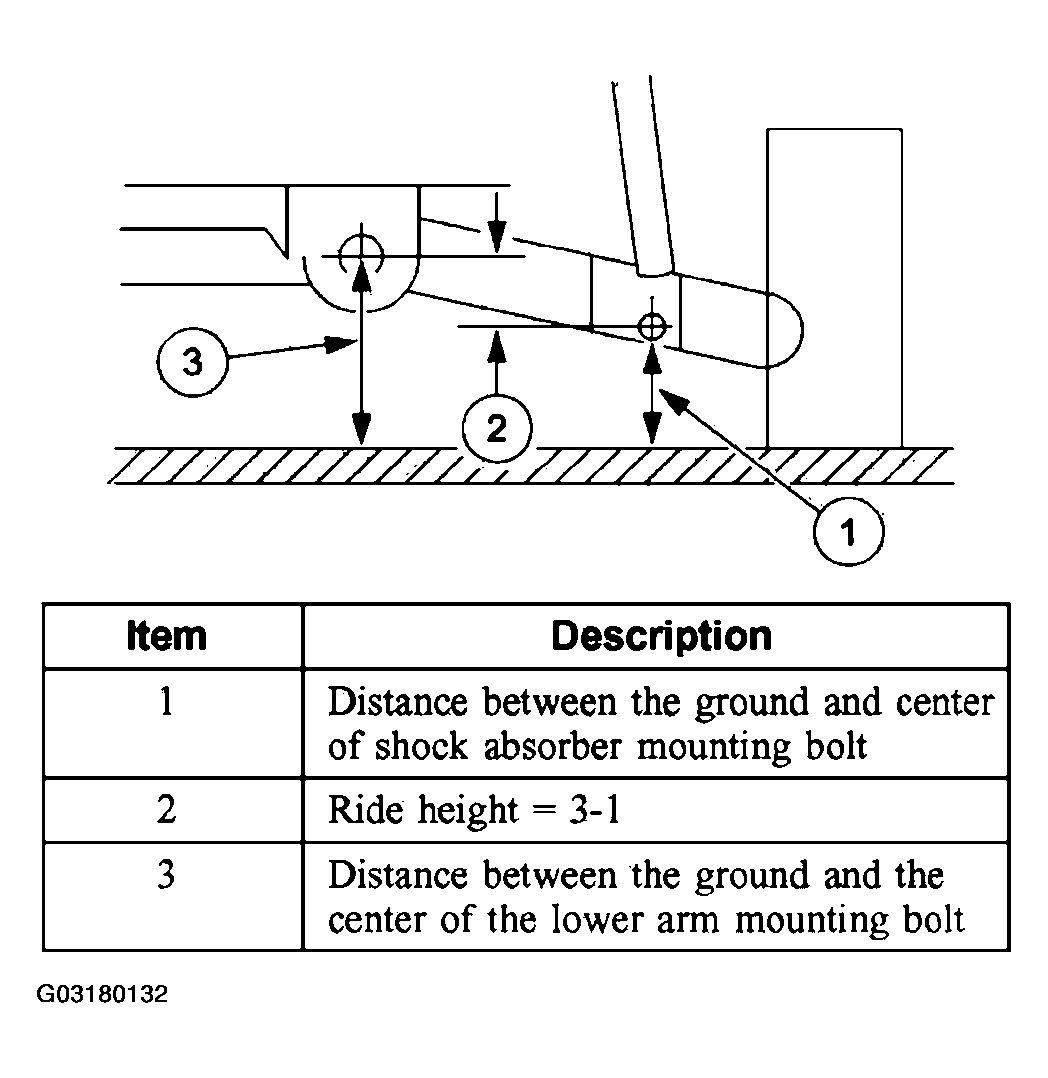

Fig 2: Measuring Rear Ride Height
G03180132Courtesy of FORD MOTOR CO.
