Sliding Door Handles: Notes
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| Multi-Purpose Grease Spray XL-5 | ESB-M1C93-B |
NOTE:
Right side shown, left side similar.
- Remove the sliding door trim panel. For additional information, refer to BODY SYSTEM - INTERIOR .

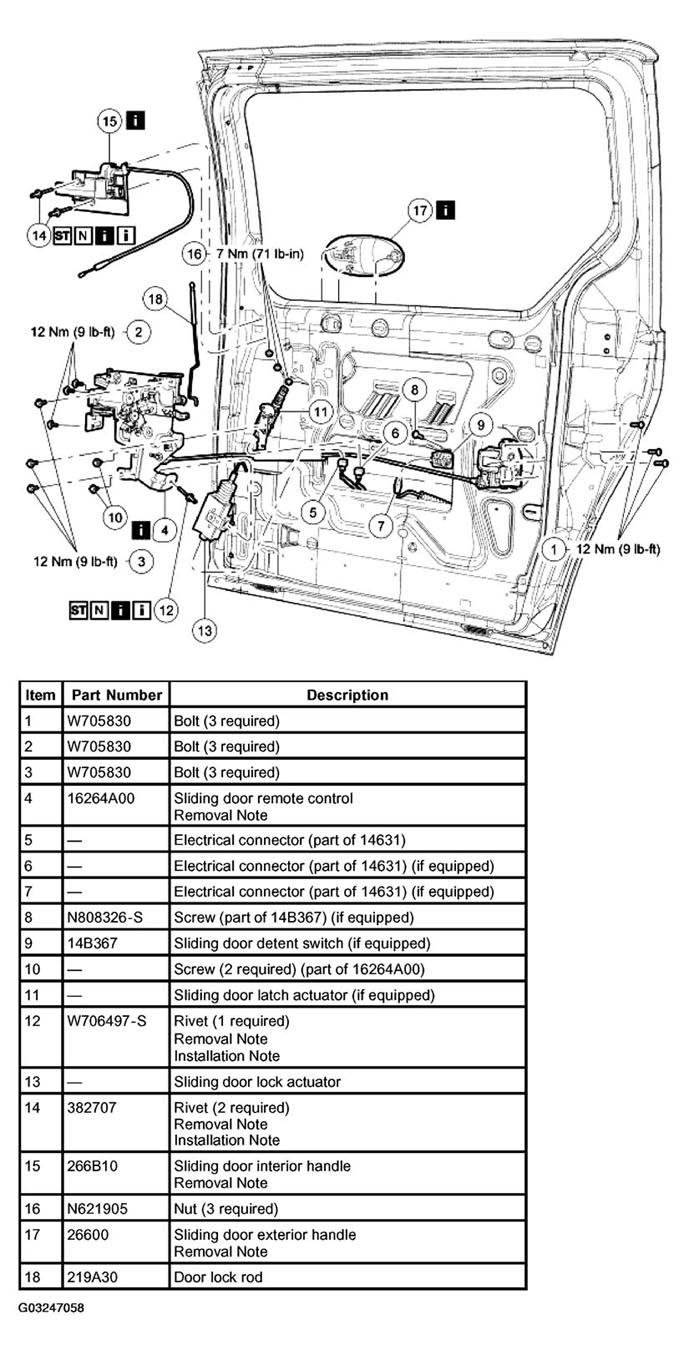

- Remove parts in the order indicated in the following illustration and table.
To remove individual parts, only carry out the listed steps:
Part Steps Exterior sliding door handle 16, 17 Interior sliding door handle 14, 15 Sliding door lock actuator 1-7, 12, 13 Sliding door detent switch 1, 7-9 Sliding door latch actuator 1-7, 10, 11 Sliding door remote control 1-7 - To install, reverse the removal procedure.
