Item 3: Liftgate Latch Installation Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Hand-tighten the bolts in the sequence shown.
  2. Tighten the bolts in the sequence shown.

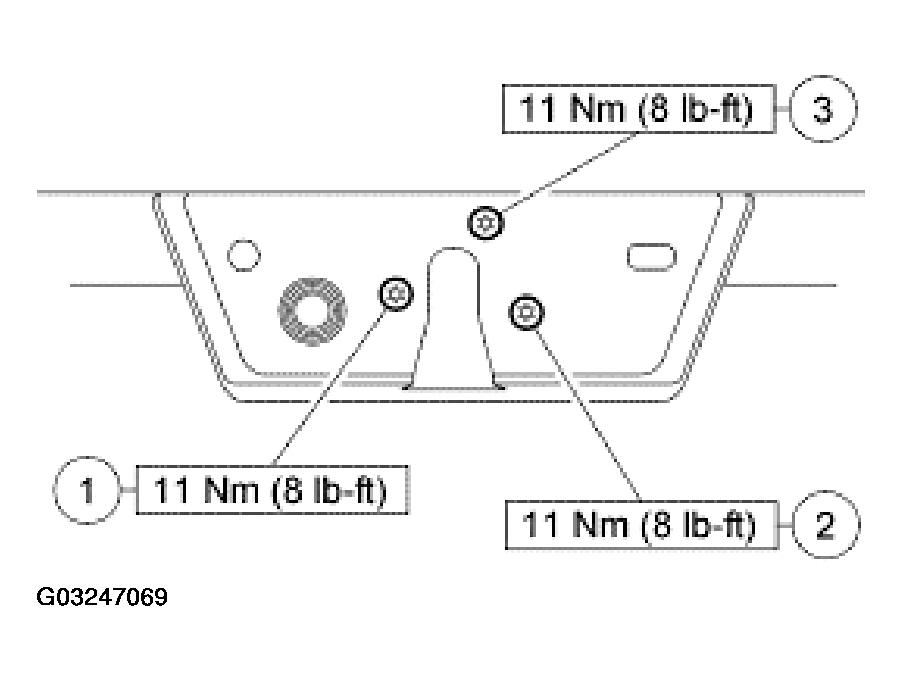

    Fig 1: Liftgate Latch Bolts Tightening Sequence
    G03247069Courtesy of FORD MOTOR CO.
