Hood Latch: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION

Item Specification
Multi-Purpose Grease Spray XL-5 ESB-M1C93-B
  1. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    Part Steps
    Hood latch 1, 2, 5, 6-7
    Primary hood latch release handle assembly 6-10
    Secondary hood latch release handle assembly 1-5
  2. Remove the parts in the order indicated in the following illustration and table.

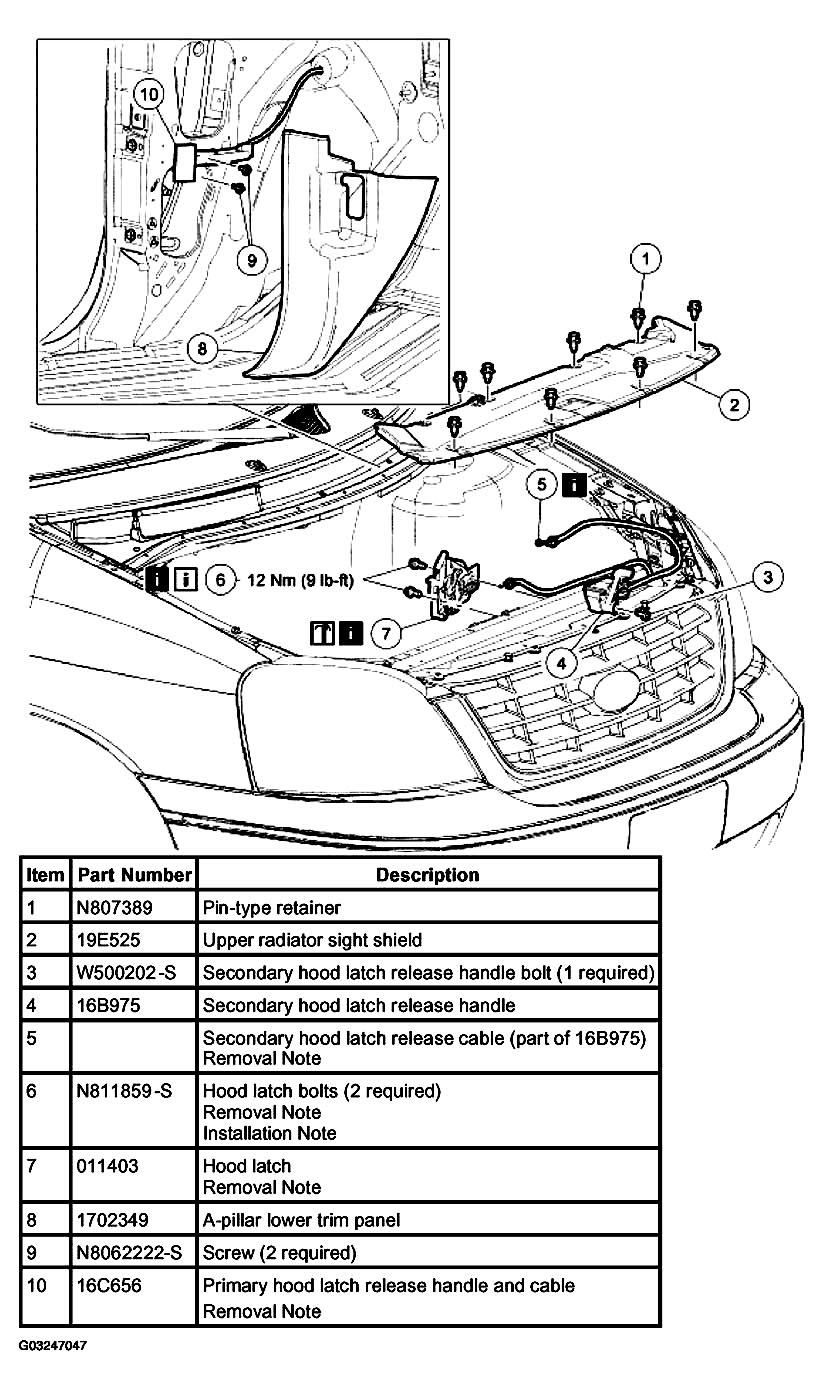

    Fig 1: Removing Hood Latch
    G03247047Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
