Door Lock Cylinder

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATION

Item	Specification
Multi-Purpose Grease Spray XL-5	ESB-M1C93-B

NOTE: When any new lock cylinder is installed, the door lock cylinders and ignition lock cylinder are installed as a set. This eliminates carrying an extra key which will fit only one lock. If a new key is used, the new key code number is stamped on a metal tag attached to the key.

NOTE: Individual lock cylinders are repaired by discarding the inoperative cylinder and building a new lock cylinder using the appropriate lock repair package. The lock repair package includes a detailed instruction sheet to build the new lock cylinder to the current key code of the vehicle.

Remove the front door handle. For additional information, refer to FRONT DOOR HANDLE .
Remove the parts in the order indicated in the following illustration and table.

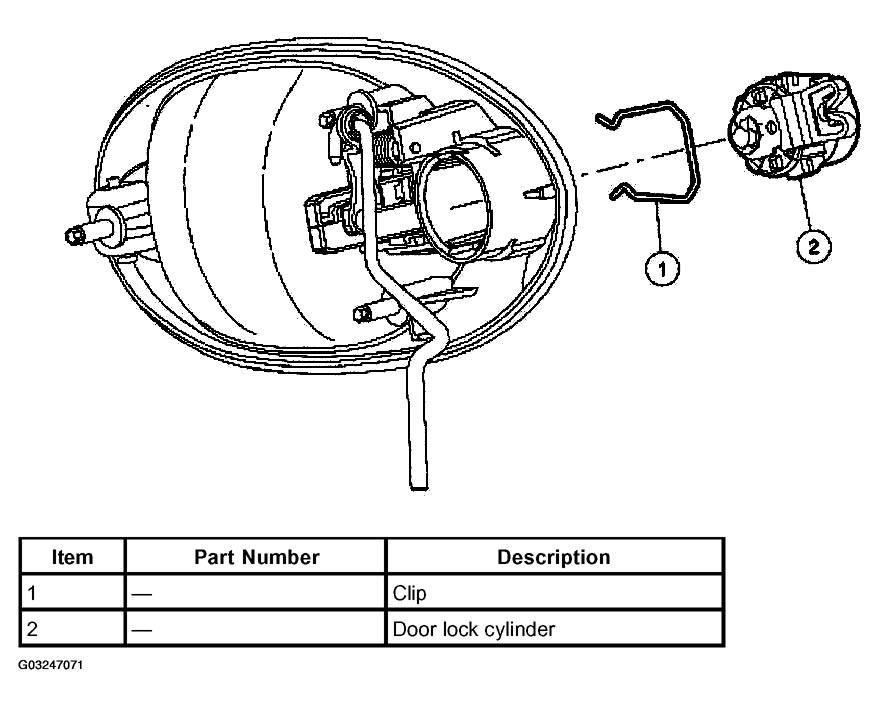

Fig 1: Removing Door Lock Cylinder
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
