Smart Junction Box (SJB) C2280b

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

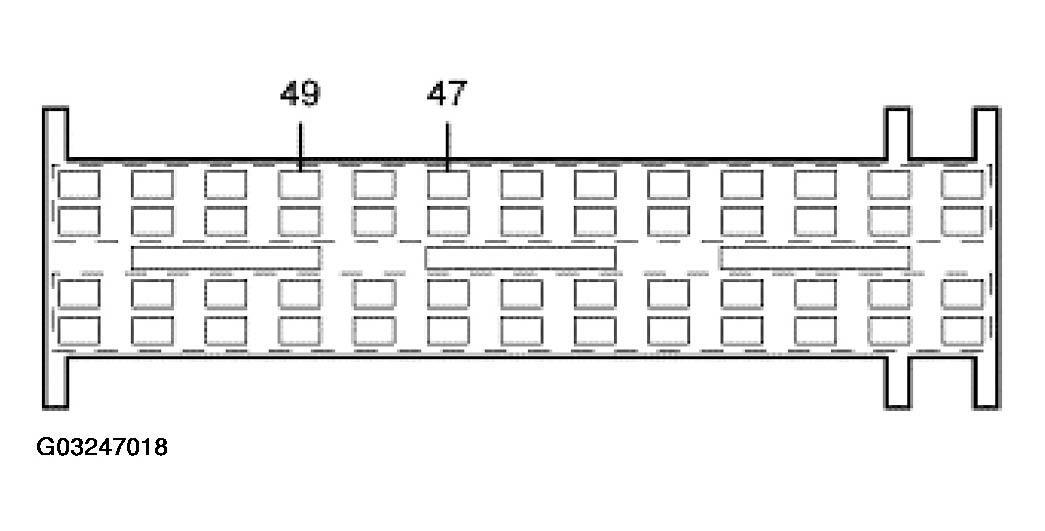

SMART JUNCTION BOX (SJB) C2280b

G03247018
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
47 1297 (YE/RD) passenger door lock control switch unlock input Less than 5 ohms resistance between the passenger door lock control switch and the SJB with the door lock control switch UNLOCK button pressed. Greater than 10,000 ohms between the SJB and ground.
49 1296 (OG/BK) passenger door lock control switch lock input Less than 5 ohms resistance between the passenger door lock control switch and the SJB with the door lock control switch LOCK button pressed. Greater than 10,000 ohms between the SJB and ground.
