Smart Junction Box (SJB) C2280a
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

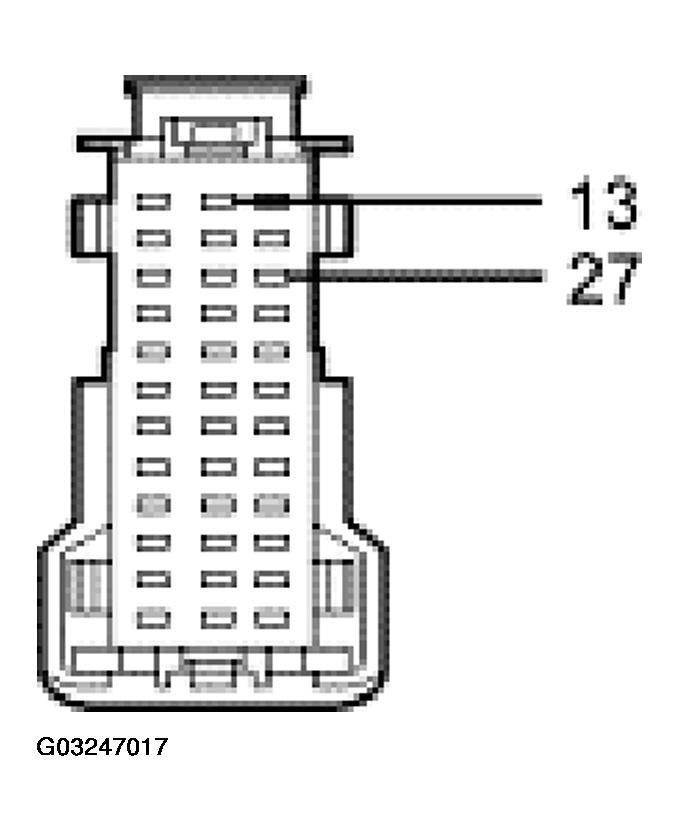

SMART JUNCTION BOX (SJB) C2280a
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 13 | 1384 (LB) door lock actuator unlock output | Less than 5 ohms resistance between the RH front door lock actuator and the SJB. Greater than 10,000 ohms resistance between the SJB and ground. |
| 27 | 1383 (RD) door lock actuator lock output | Less than 5 ohms resistance between the RH front door lock actuator and the SJB. Greater than 10,000 ohms resistance between the SJB and ground. |
