Smart Junction Box (SJB) C2280H

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

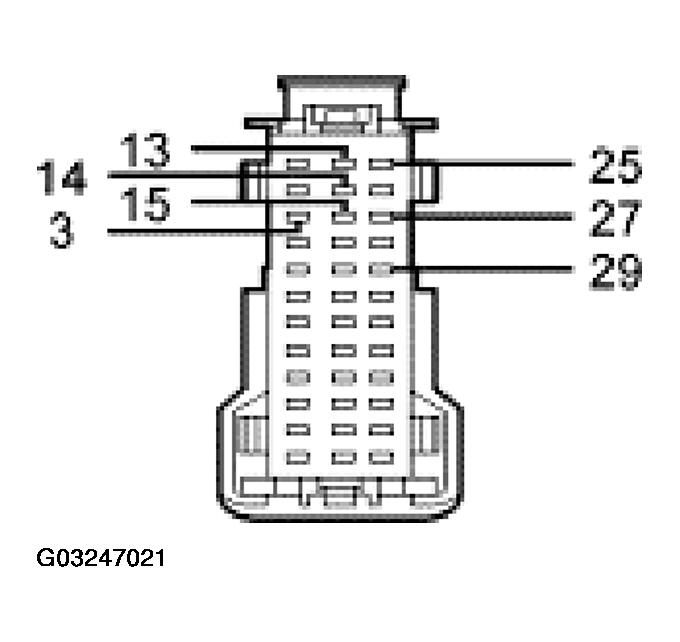

SMART JUNCTION BOX (SJB) C2280H

G03247021
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
3 1387 (VT) LH sliding door lock actuator lock output Less than 5 ohms resistance between the vehicle sliding door contact switch and the SJB. Less than 5 ohms resistance between the door lock actuator and the sliding door contact switch. Greater than 10,000 ohms resistance between the SJB and ground.
13 1386 (OG) RH sliding door lock actuator unlock output Less than 5 ohms resistance between the vehicle sliding door contact switch and the SJB. Less than 5 ohms resistance between the door lock actuator and the sliding door contact switch. Greater than 10,000 ohms resistance between the SJB and ground.
14 1384 (LB) liftgate lock actuator unlock output Less than 5 ohms resistance between the door lock actuator and the SJB. Greater than 10,000 ohms resistance between the SJB and ground.
15 1385 (LG) RH sliding door lock actuator lock output Less than 5 ohms resistance between the vehicle sliding door contact switch and the SJB. Less than 5 ohms resistance between the door lock actuator and the sliding door contact switch. Greater than 10,000 ohms resistance between the SJB and ground.
25 1388 (GY) LH sliding door lock actuator unlock output Less than 5 ohms resistance between the vehicle sliding door contact switch and the SJB. Less than 5 ohms resistance between the door lock actuator and the sliding door contact switch. Greater than 10,000 ohms resistance between the SJB and ground.
27 1383 (RD) liftgate lock actuator lock output Less than 5 ohms resistance between the door lock actuator and the SJB. Greater than 10,000 ohms resistance between the SJB and ground.
29 37 (YE) SJB door lock relay power supply Greater than 10 volts between the SJB and ground. Less than 5 ohms resistance between the SJB and the BEC.
