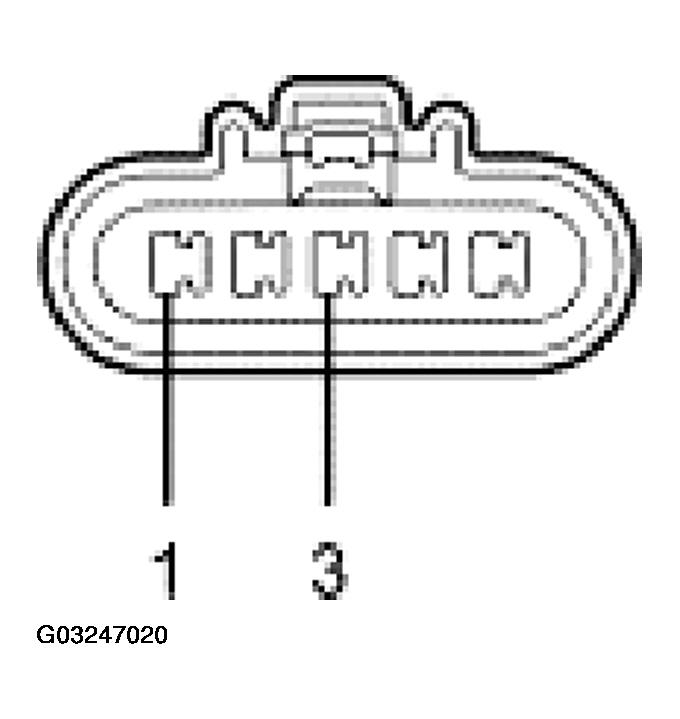

SMART JUNCTION BOX (SJB) C2280G
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 1329 (YE) door lock actuator unlock output | Greater than 10 volts when the door lock control switch is placed into the unlock position. Less than 5 ohms resistance between the door lock actuator and the SJB. |
| 3 | 1328 (RD/OG) door lock actuator lock output | Greater than 10 volts when the door lock control switch is placed into the lock position. Less than 5 ohms resistance between the door lock actuator and the SJB. |
