Passenger Door Lock Control Switch C605
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

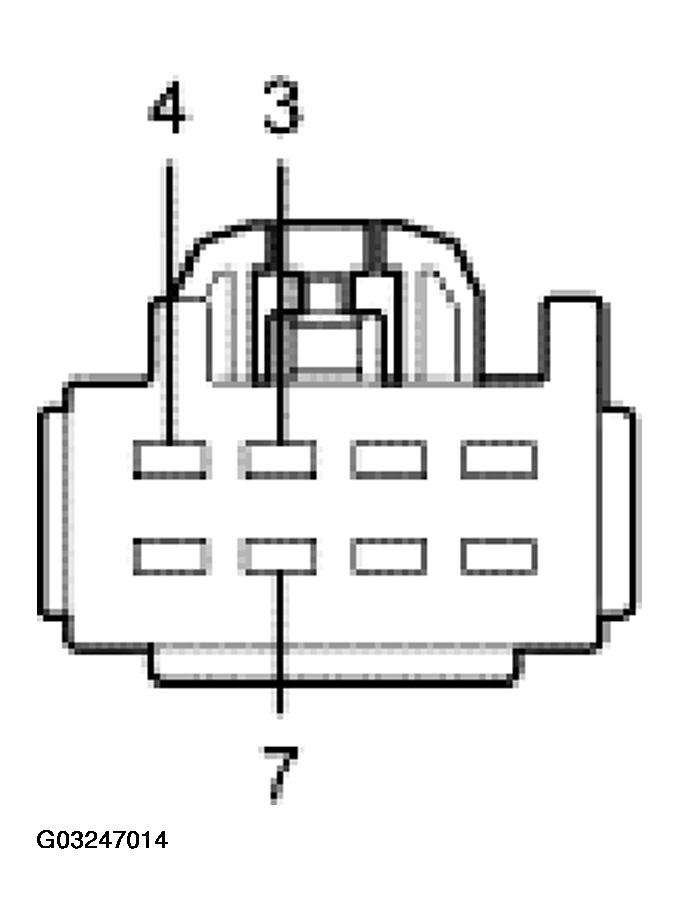

PASSENGER DOOR LOCK CONTROL SWITCH C605
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 3 | 1296 (OG/BK) passenger door lock control switch lock input | Less than 5 ohms resistance between the passenger door lock control switch and the SJB. Greater than 10,000 ohms between the passenger door lock control switch and ground. |
| 4 | 1205 (BK) passenger door lock control switch ground | 0 voltage, less than 5 ohms resistance between the passenger door lock control switch and ground. |
| 7 | 1297 (YE/RD) passenger door lock control switch unlock input | Less than 5 ohms resistance between the passenger door lock control switch and the SJB. Greater than 10,000 ohms between the passenger door lock control switch and ground. |
