Liftgate Lock Actuator C457

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
LIFTGATE LOCK ACTUATOR C457

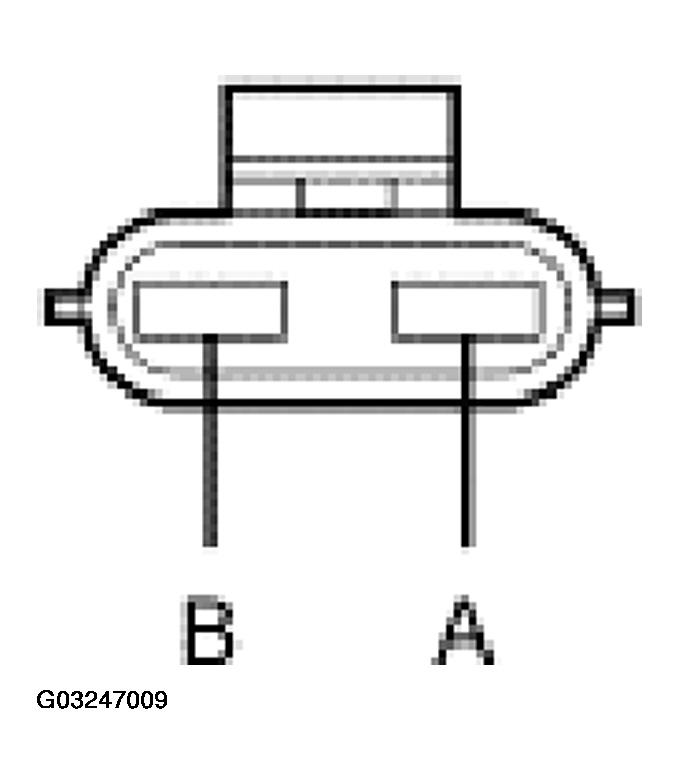

G03247009
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
A 1384 (LB) liftgate lock actuator unlock output Greater than 10 volts when the door lock control switch is placed into the unlock position. Less than 5 ohms resistance between the door lock actuator and the SJB. Greater than 10,000 ohms resistance between the door lock control switch and ground.
B 1383 (RD) liftgate lock actuator lock output Greater than 10 volts when the door lock control switch is placed into the lock position. Less than 5 ohms resistance between the door lock actuator and the SJB. Greater than 10,000 ohms resistance between the door lock control switch and ground.
