Remote Transmitter

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

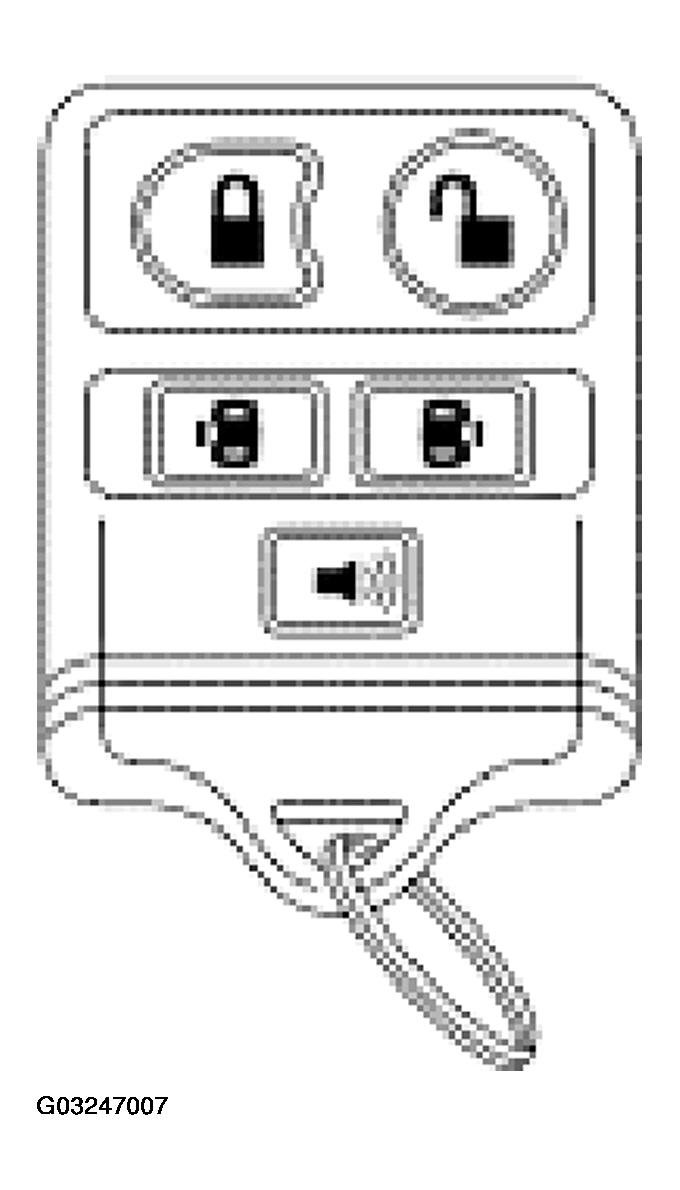

Fig 1: Identifying Remote Transmitter (1 Of 2)

Courtesy of FORD MOTOR CO.

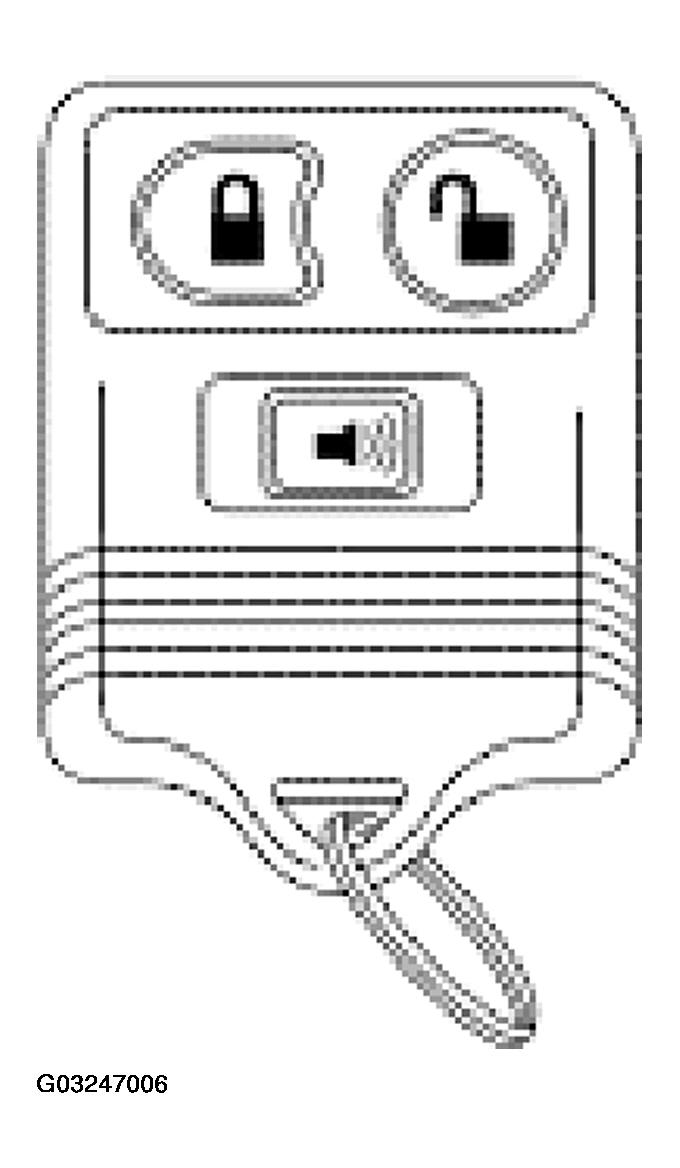

Fig 2: Identifying Remote Transmitter (2 Of 2)

Courtesy of FORD MOTOR CO.

The remote transmitter will:

lock or unlock all vehicle doors and liftgate without a key.
unlock/open a RH power sliding door and/or LH power sliding door (if equipped).
activate the perimeter alarm.
arm and disarm the perimeter anti-theft system (if equipped).

The remote transmitter has a minimum operating range of 10 m (33 feet).
