Item 7: Backrest-To-Cushion Nuts Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the four (two shown) backrest-to-cushion nuts.

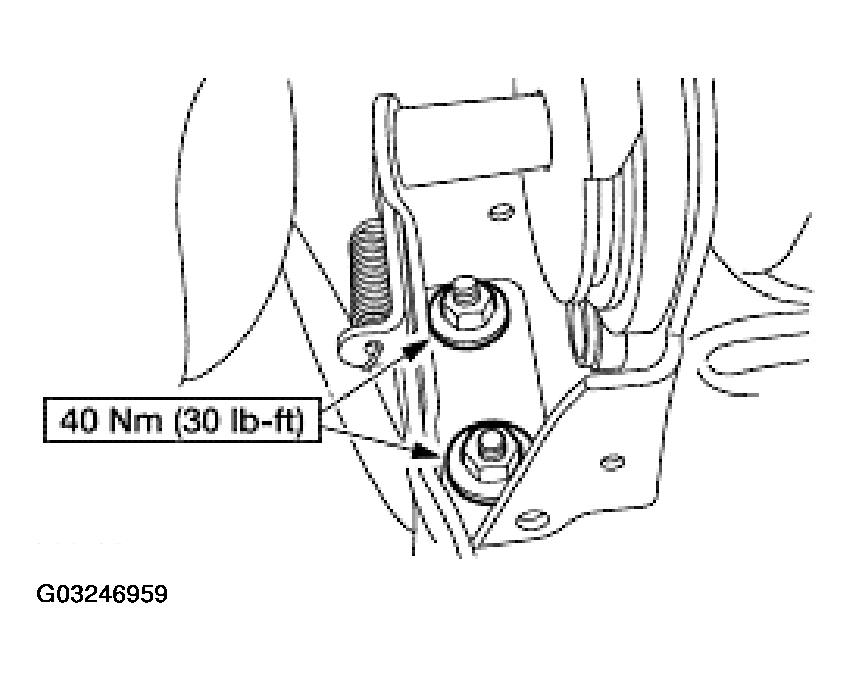

    Fig 1: Removing Backrest-To-Cushion Nuts
    G03246959Courtesy of FORD MOTOR CO.
  2. Backrest-to-cushion removal.
    1. Release the hook-and-loop fastener and remove fabric flap.
    2. Release the center J-clips.
    3. Pull the center material down and route the material behind the tether anchor bar and remove the seat backrest.

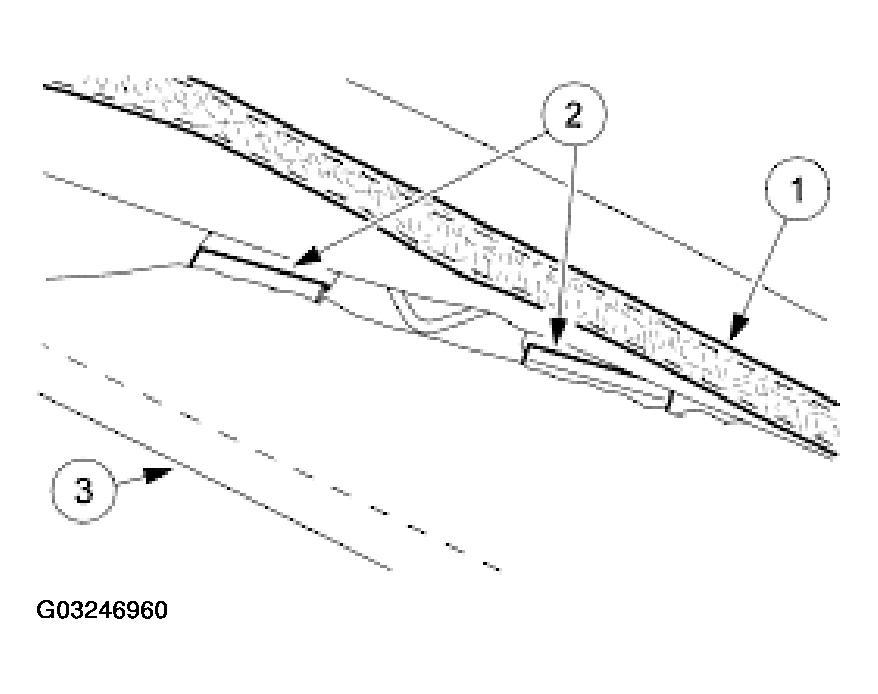

Fig 2: Removing Backrest-To-Cushion
G03246960Courtesy of FORD MOTOR CO.
