Item 10: Cushion Trim Cover Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws and pin-type retainers, and remove the latch covers (one shown).

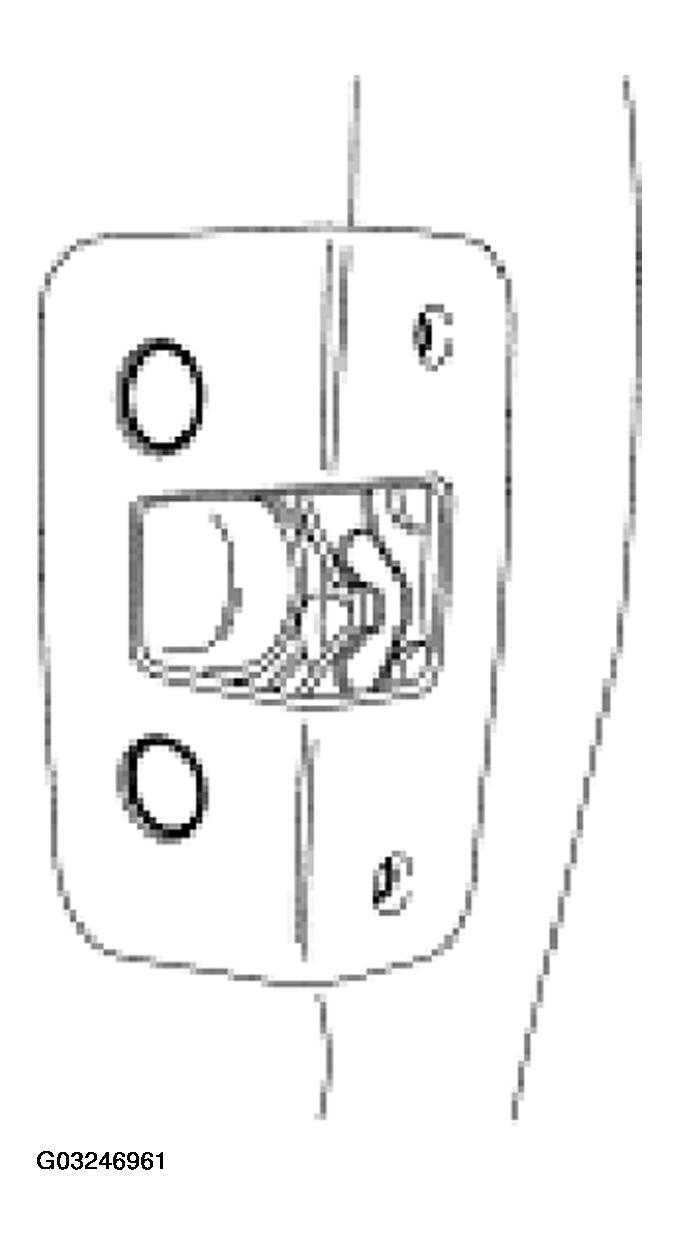

    Fig 1: Removing Latch Covers
    G03246961Courtesy of FORD MOTOR CO.
  2. Release the J-clips.

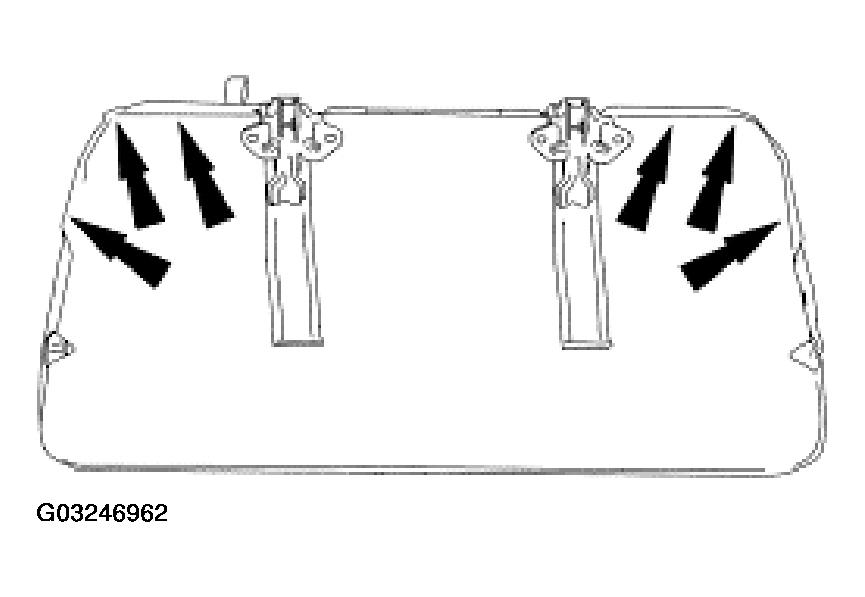

    Fig 2: Releasing J-Clips
    G03246962Courtesy of FORD MOTOR CO.
    3. CAUTION: Use care when separating the seat upholstery from the hook and loop strip, or the hook and loop strip can be torn from the seat backrest foam pad.
  3. Separate the hook-and-loop fasteners.
  4. Remove and discard all the hog rings and remove the cushion trim cover.
