Rear Seat Cushion - Bucket Seat, Second Row: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: LH seat shown, RH seat is similar.
  1. Remove the bucket seat, second row.
  2. Disassemble the parts in the order listed in the following illustration and table.
    PARTS REMOVING SEQUENCE

    Part Steps
    Bucket seat backrest 1-13
    Cushion trim cover 1-26
    Inboard safety belt buckle 8-12
    Seat riser strut 29

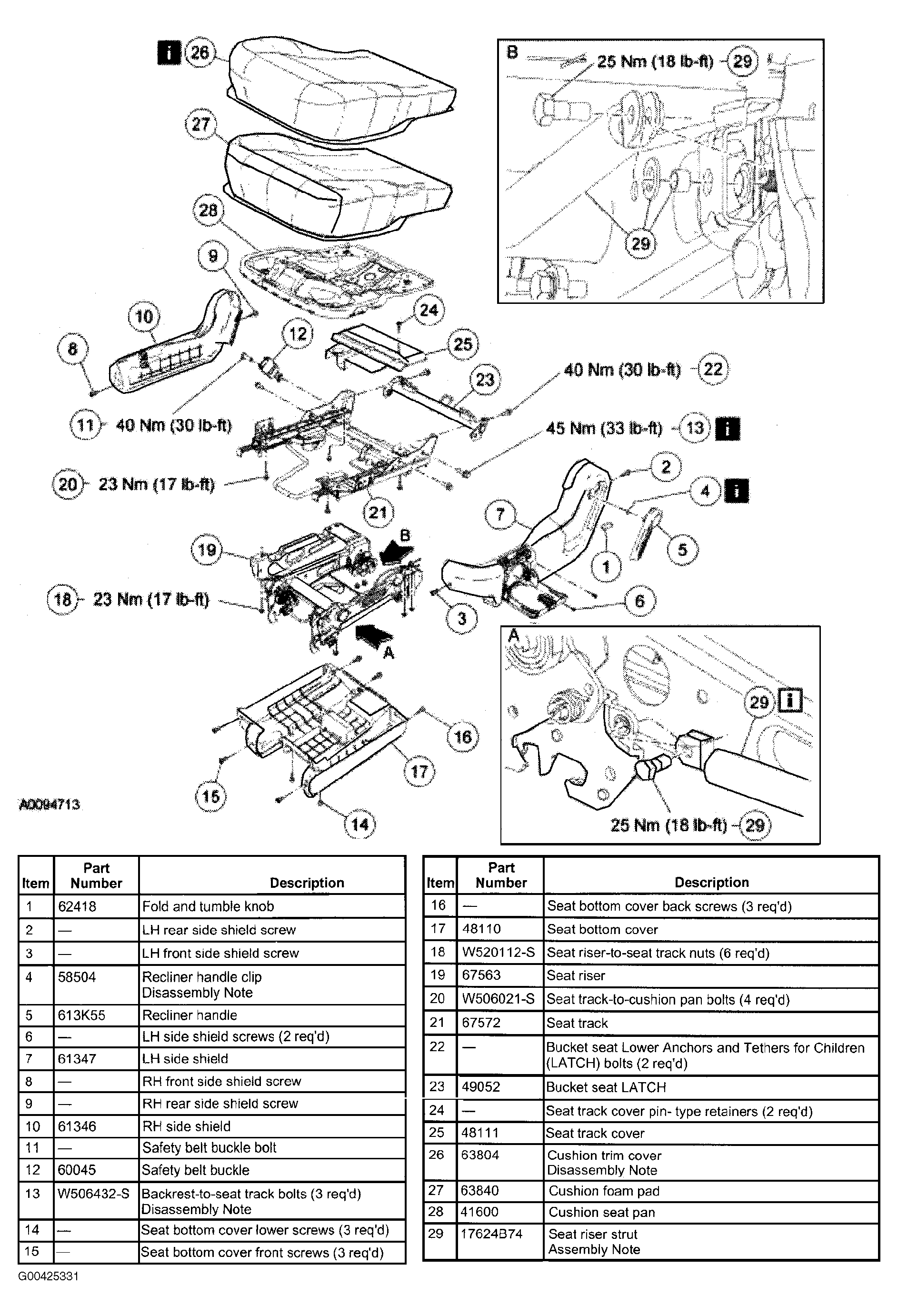

    Fig 1: Rear Seat Cushion - Bucket Seat, Second Row Components Removal Sequence
    G00425331Courtesy of FORD MOTOR CO.
  3. To assemble, reverse the disassembly procedure.
