Rear Seat Cushion - Bench Seat, Second Row: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Seat with optional cupholder shown, without cupholder similar.
  2. Remove the bench seat, second row.
  3. Disassemble the parts in the order listed in the following illustration and table.
    PARTS REMOVING SEQUENCE

    Part Steps
    Bench seat backrest, second row 1-20
    LH safety belt buckle 1-7, 15-16
    RH safety belt buckle 8-14, 18-19
    Center safety belt buckles 34-35
    Seat cushion trim cover 1-36

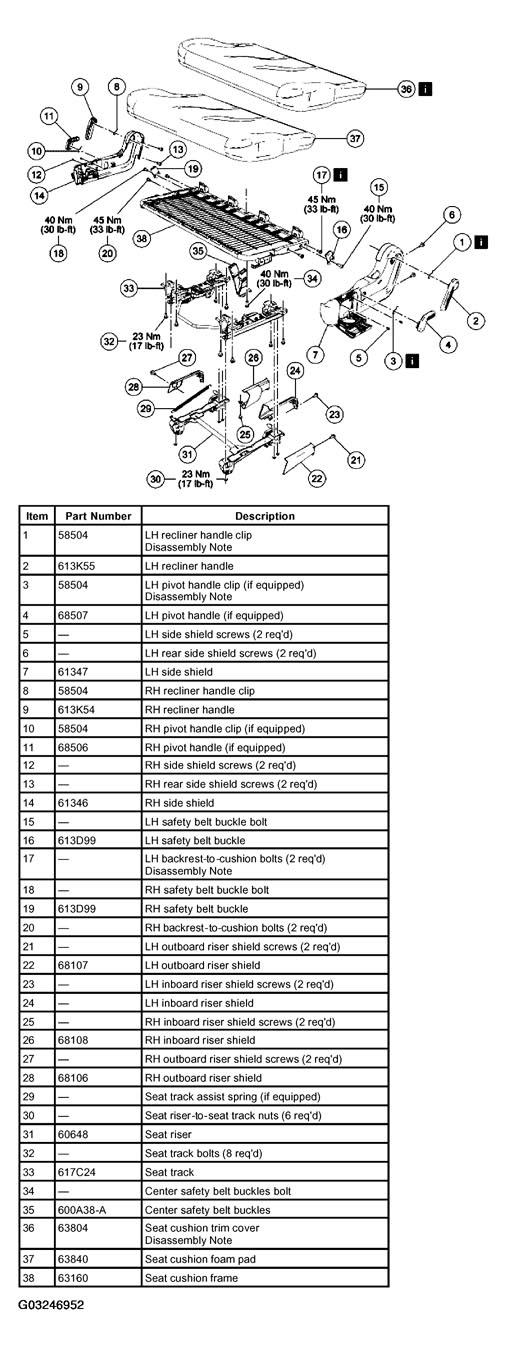

    Fig 1: Rear Seat Cushion - Bench Seat, Second Row Components Removal Sequence
    G03246952Courtesy of FORD MOTOR CO.
  4. To assemble, reverse the disassembly procedure.
