Item 36: Seat Cushion Trim Cover Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the J-clips.

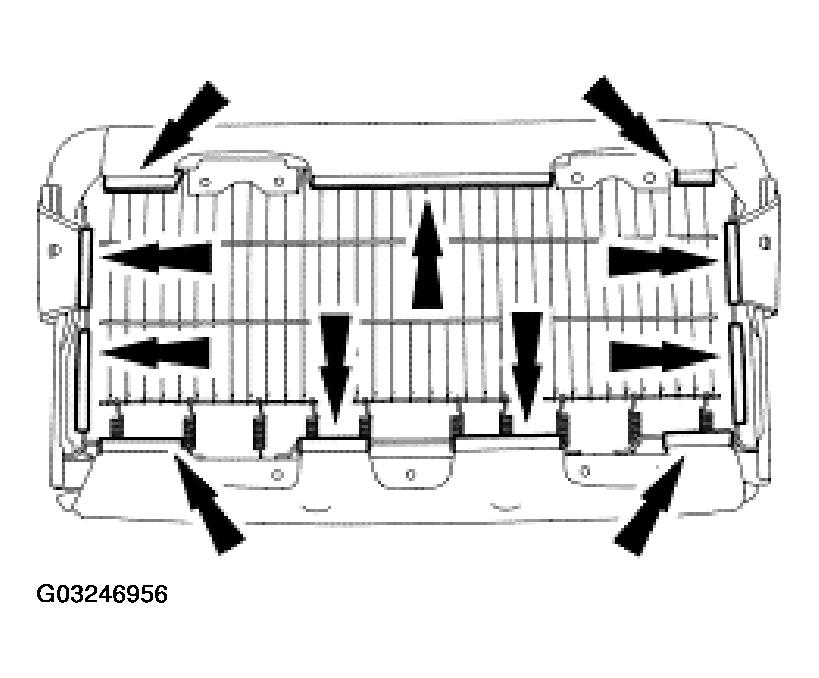

    Fig 1: Releasing J-Clips
    G03246956Courtesy of FORD MOTOR CO.
    2. CAUTION: Use care when separating the seat upholstery from the hook and loop strip, or the hook and loop strip can be torn from the seat cushion foam pad.
  2. Separate the hook and loop fasteners.
  3. Remove and discard all the hog rings (one shown) and remove the cushion trim cover.

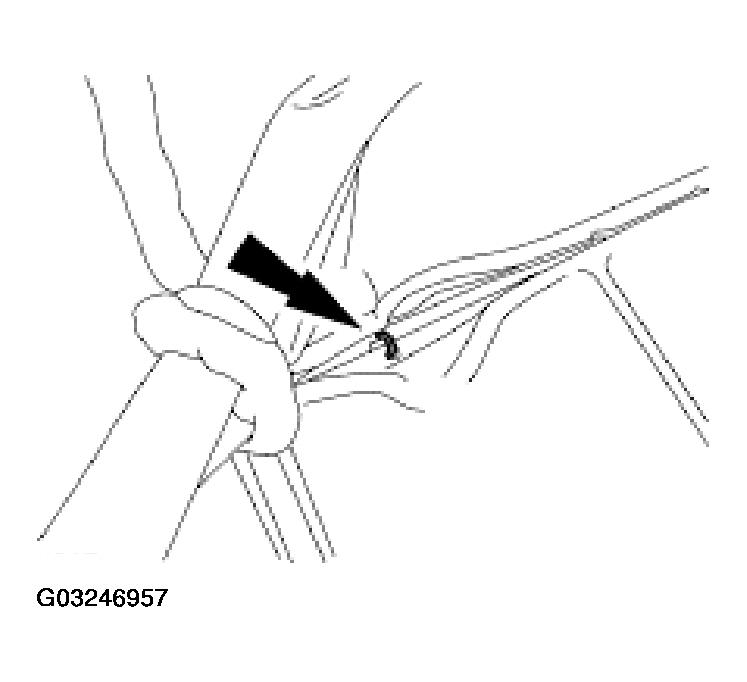

Fig 2: Removing Cushion Trim Cover
G03246957Courtesy of FORD MOTOR CO.
