Item 17: Backrest-To-Cushion Bolt Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Removal of cushion release cables.
    1. Release the RH cable end.
    2. Release the RH cable from the anchor retainer.
    3. Release the LH cable end.
    4. Release the LH cable from the anchor retainer.

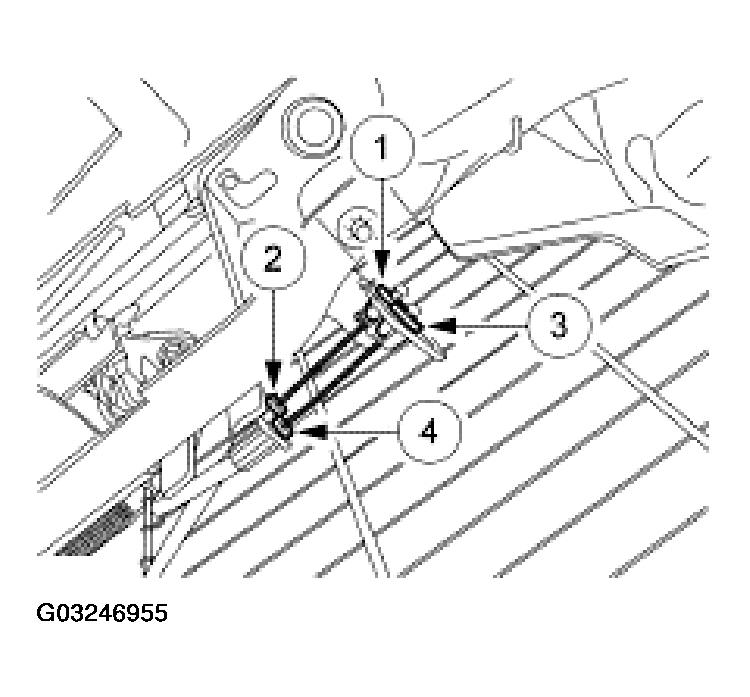

Fig 1: Removing Cushion Release Cables
G03246955Courtesy of FORD MOTOR CO.
