Item 5: Seat Backrest Trim Cover Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hardboard panel from under the backrest trim cover.
    2. CAUTION: Use care when separating the seat upholstery from the hook and loop strip, or the hook and loop strip can be torn from the seat backrest foam pad.
  2. Separate the hook and loop fasteners.
  3. Remove and discard all the hog rings (three shown) and remove the seat trim cover.

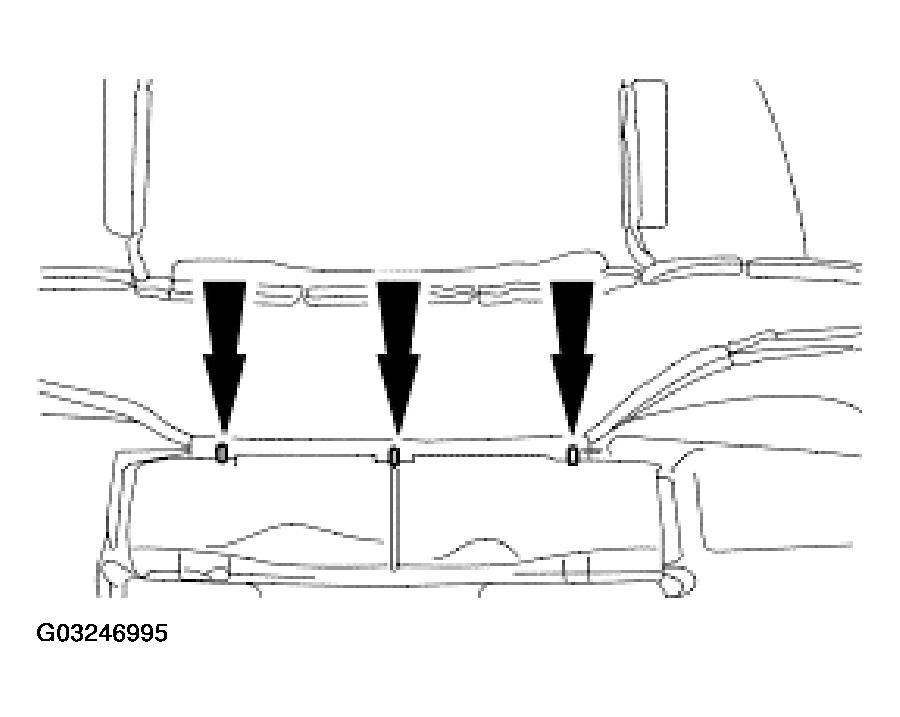

Fig 1: Removing Hog Rings And Seat Trim Cover
G03246995Courtesy of FORD MOTOR CO.
