Item 4: Backrest Pull-Strap Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the two screws and remove the backrest pull-strap handle assembly.

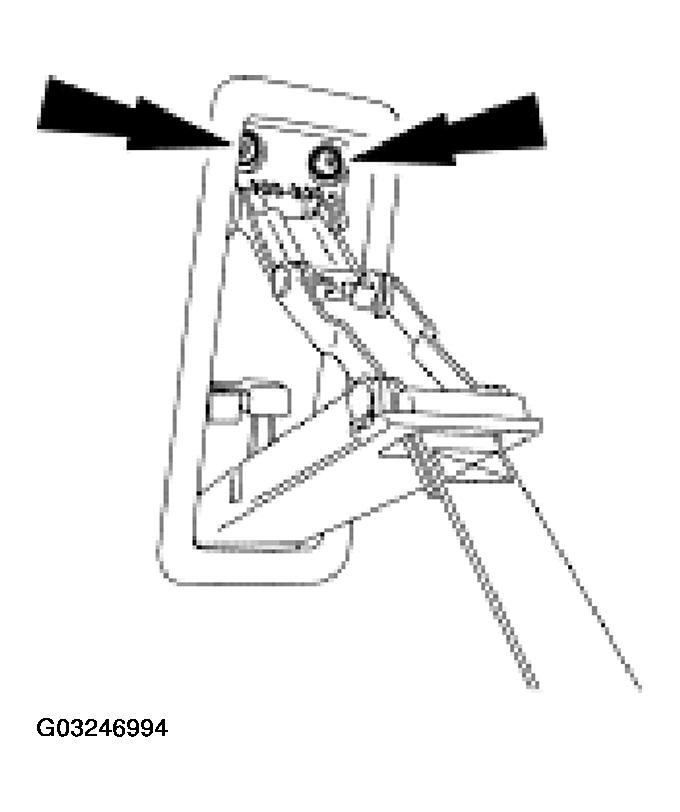

Fig 1: Removing Screws And Backrest Pull-Strap Handle Assembly
G03246994Courtesy of FORD MOTOR CO.
