Item 2: Head Restraint Sleeves Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the backrest J-clip.
    2. NOTE: The inboard and outboard head restraint sleeves are not interchangeable.
  2. Squeeze together the tip of the head restraint sleeves and pull the sleeves out of the frame tube.

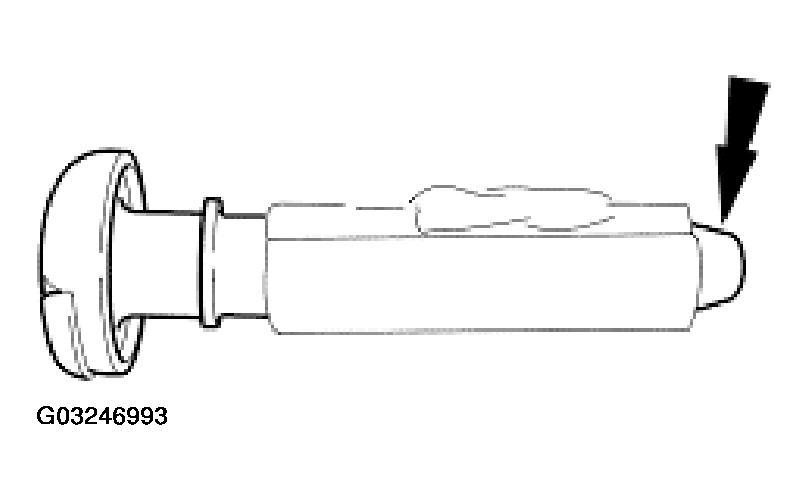

Fig 1: Identifying Head Restraint Sleeves And Frame Tube
G03246993Courtesy of FORD MOTOR CO.
