Rear Seat Backrest - Bucket Seat, Second Row: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bucket seat, second row.
  2. Remove the bucket seat backrest, second row. For additional information, refer to REAR SEAT CUSHION - BUCKET SEAT, SECOND ROW .
  3. Disassemble the parts in the order listed in the following illustration and table.
    PARTS REMOVING SEQUENCE

    Part Steps
    Backrest trim cover 1-8

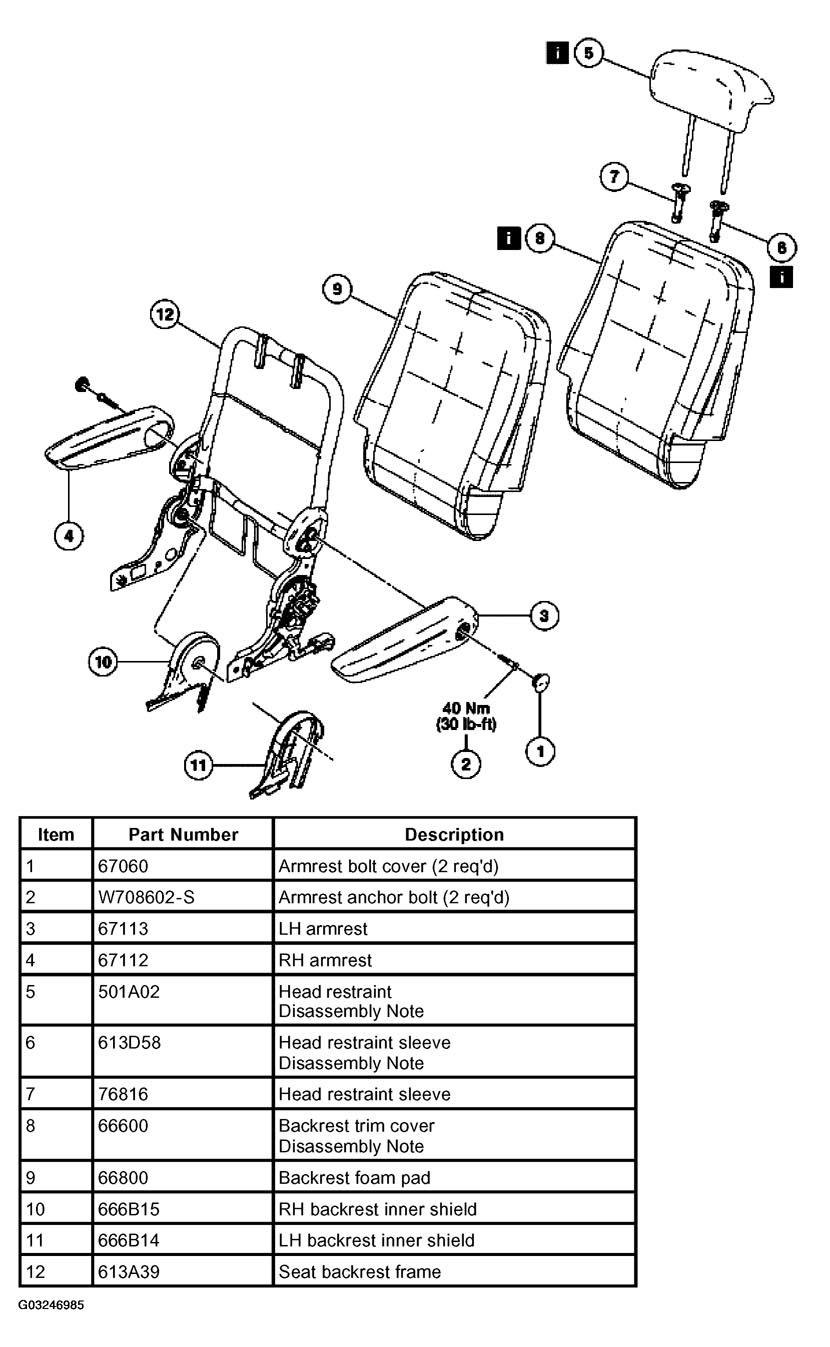

    Fig 1: Rear Seat Backrest - Bucket Seat, Second Row Components Removal Sequence
    G03246985Courtesy of FORD MOTOR CO.
  4. To assemble, reverse the disassembly procedure.
