Rear Seat Backrest - Bench Seat, Second Row: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bench seat, second row.
  2. Remove the bench seat backrest, second row. For additional information, refer to REAR SEAT CUSHION - BENCH SEAT, SECOND ROW .
  3. Disassemble the parts in the order listed in the following illustration and table.
    PARTS REMOVING SEQUENCE

    Part Steps
    Backrest trim cover 1-8

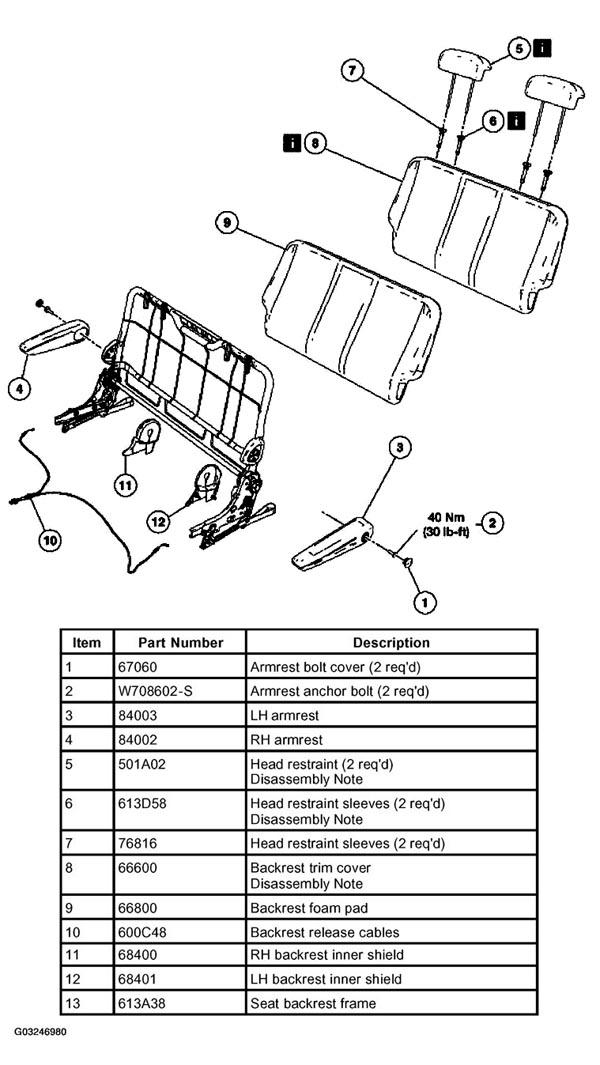

    Fig 1: Rear Seat Backrest - Bench Seat, Second Row Components Removal Sequence
    G03246980Courtesy of FORD MOTOR CO.
  4. To assemble, reverse the disassembly procedure.
