Item 6: Head Restraint Sleeves Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

Release the J-clip.

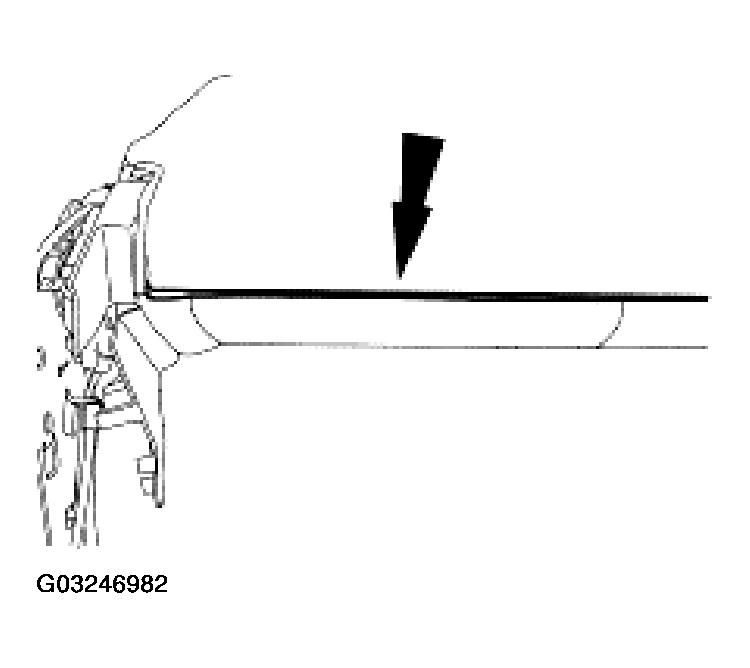

Fig 1: Releasing J-Clip
Courtesy of FORD MOTOR CO.

NOTE: The inboard and outboard head restraint sleeves are not interchangeable.

Squeeze together the tip of the head restraint sleeve and pull the sleeve out of the frame tube.

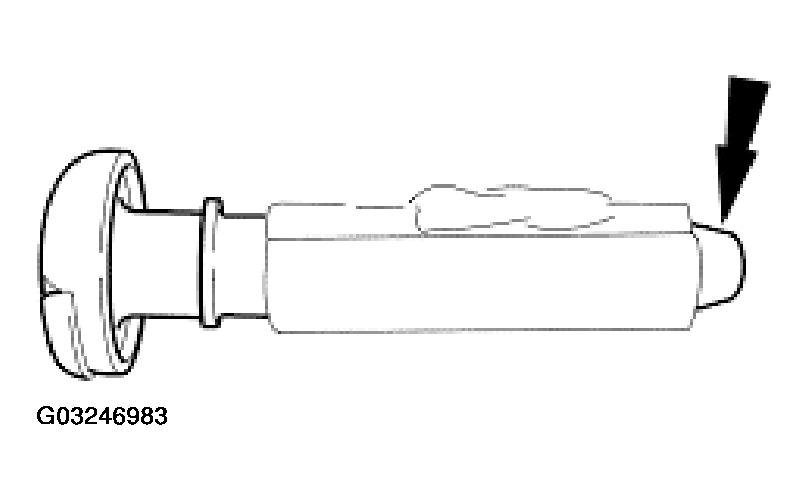

Fig 2: Identifying Head Restraint Sleeve And Frame Tube

Courtesy of FORD MOTOR CO.
