Item 5: Head Restraint Sleeves Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the J-clip.

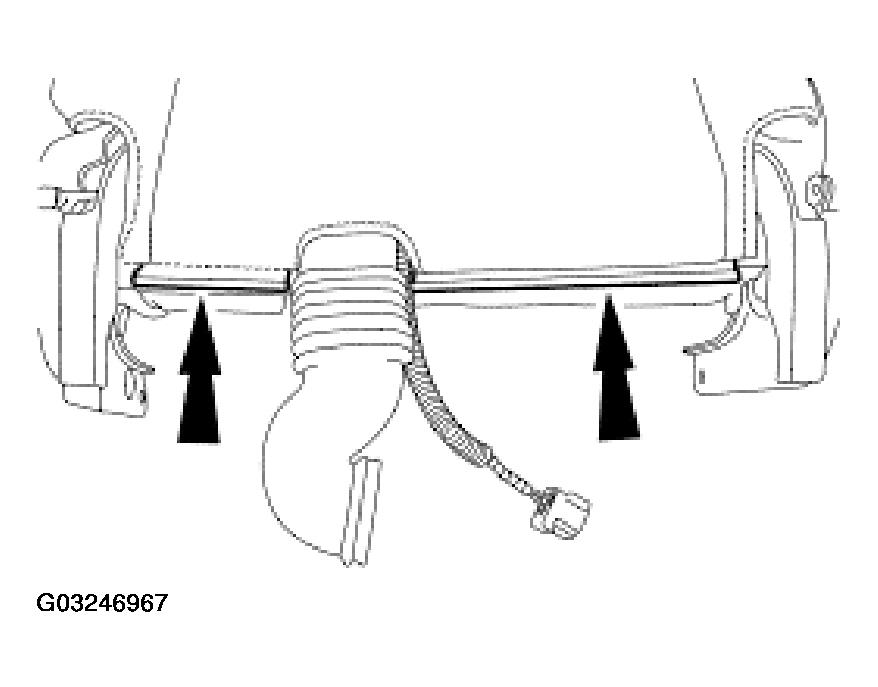

    Fig 1: Releasing J-Clip
    G03246967Courtesy of FORD MOTOR CO.
  2. Reach up in the seat back and pinch the end of the head restraint sleeves and remove.

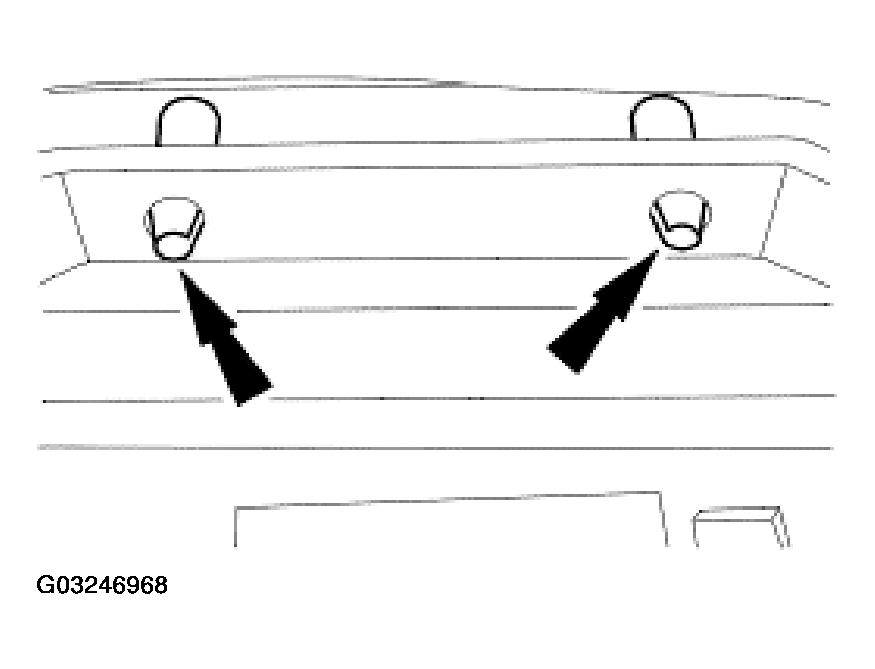

Fig 2: Removing Head Restraint Sleeves
G03246968Courtesy of FORD MOTOR CO.
