Item 1: Head Restraint Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a suitable tool, insert in the head restraint sleeve hole and release tab on head restraint sleeve and push the release tab on the other head restraint sleeve and remove the head restraint.

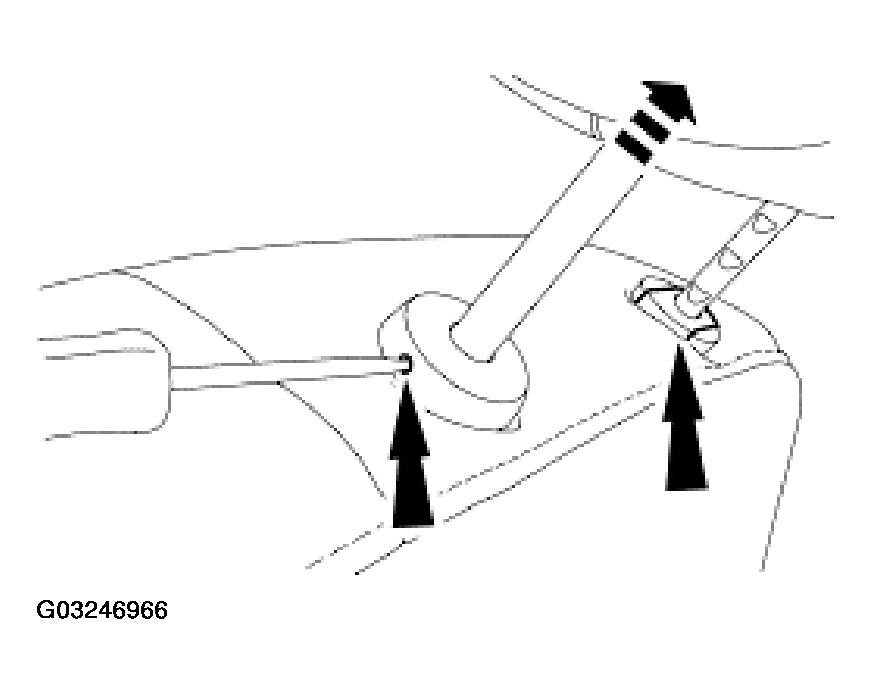

Fig 1: Inserting Head Restraint Sleeve Hole Using Suitable Tool
G03246966Courtesy of FORD MOTOR CO.
