Driver and Passenger Heated Seat Cushion Element C364/C334

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

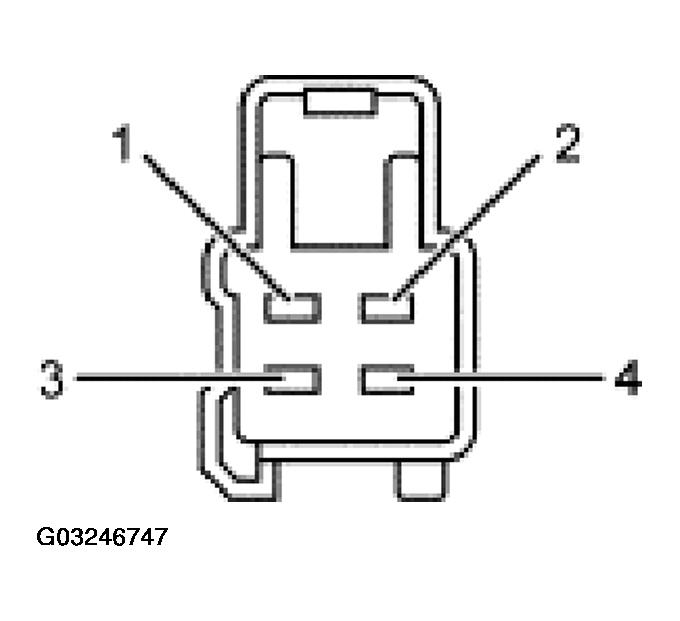

Fig 1: Identifying Driver and Passenger Heated Seat Cushion Element C364/C334
G03246747Courtesy of FORD MOTOR CO.
DRIVER AND PASSENGER HEATED SEAT CUSHION ELEMENT C364/C334 PIN CIRCUIT REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 CKT 1064 (YE/LB) Heated seat cushion element feed Continuity from heated seat module, less than 5 ohms.
2 CKT 1060 (BK/LB) Heated seat cushion sensor feed Continuity from heated seat module, less than 5 ohms.
3 CKT 1061 (BN/LB) Heated seat cushion sensor return Continuity to heated seat module, less than 5 ohms.
4 CKT 1067 (PK/BU) Heated seat element feed return Continuity from cushion element to backrest element, less than 5 ohms.
