Driver and Passenger Climate Controlled Seat Fan C3033/C3038

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

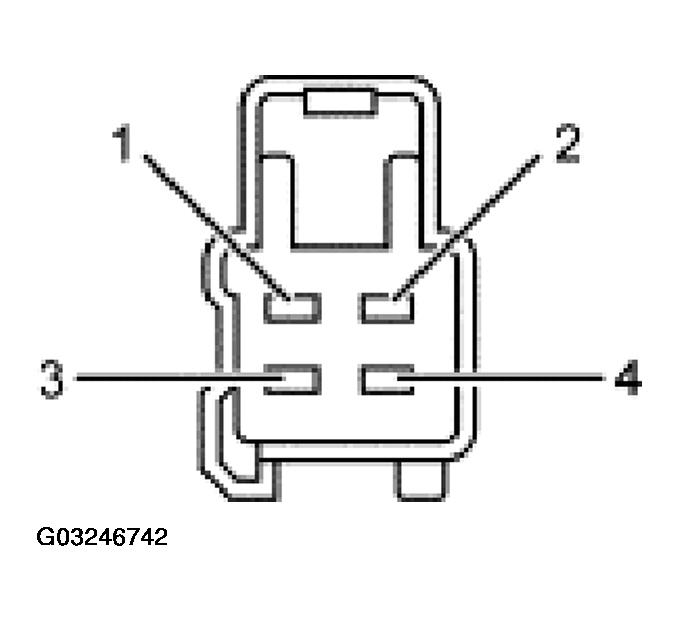

Fig 1: Identifying Driver and Passenger Climate Controlled Seat Fan C3033/C3038
G03246742Courtesy of FORD MOTOR CO.
DRIVER AND PASSENGER CLIMATE CONTROLLED SEAT FAN C3033/C3038 PIN CIRCUIT REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 CKT 1565 (VT) Climate controlled seat fan, signal Continuity to seat fan motor, less than 5 ohms.
2 CKT 1554 (WH) Temperature controlled seat fan tachometer circuit Continuity to CCSM from climate controlled seat fan, less than 5 ohms.
3 CKT 1552 (RD) Climate controlled seat fan voltage feed Continuity to CCSM from climate controlled seat fan, less than 5 ohms.
4 CKT 1553 (BK) Climate controlled seat fan voltage return Continuity to CCSM from climate controlled seat fan, less than 5 ohms.
