Driver and Passenger Climate Controlled Seat Backrest TED C3034/C3039

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

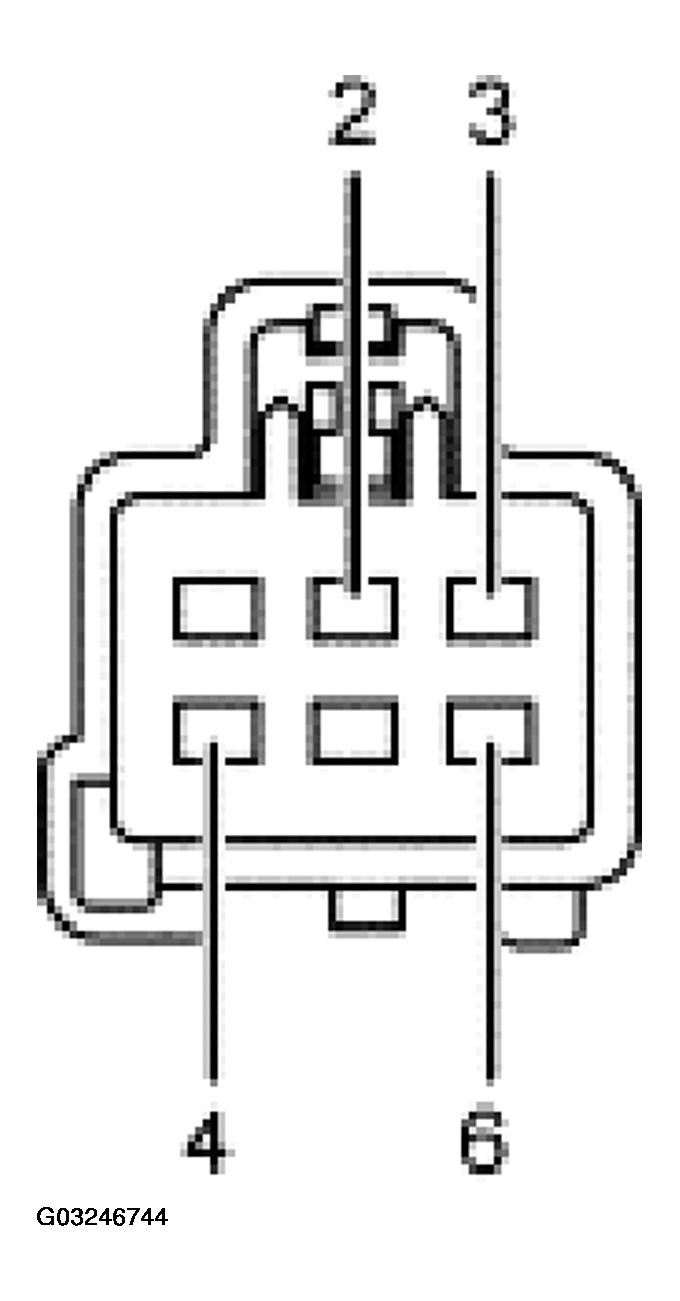

Fig 1: Identifying Driver and Passenger Climate Controlled Seat Backrest TED C3034/C3039

Courtesy of FORD MOTOR CO.

DRIVER AND PASSENGER CLIMATE CONTROLLED SEAT BACKREST TED C3034/C3039 PIN CIRCUIT REFERENCE

Pin Number(s)	Circuit Designation/Description	Normal Condition/Measurement
2	CKT 2076 (BK/PK) Climate controlled seat backrest sensor return	Continuity to CCSM from backrest TED, less than 5 ohms.
3	CKT 1549 (DB/OG) Climate controlled seat backrest sensor signal	Continuity to CCSM from backrest TED, less than 5 ohms.
4	CKT 2075 (WH/LB) Climate controlled seat backrest temperature sensor return	Continuity to seat backrest TED, less than 5 ohms.
6	CKT 2074 (LB/BK) Climate controlled seat backrest temperature sensor feed	Continuity to seat backrest TED, less than 5 ohms.
