Front Disc Brake Pads: Removal

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support vehicle. Remove wheel and tire assembly.

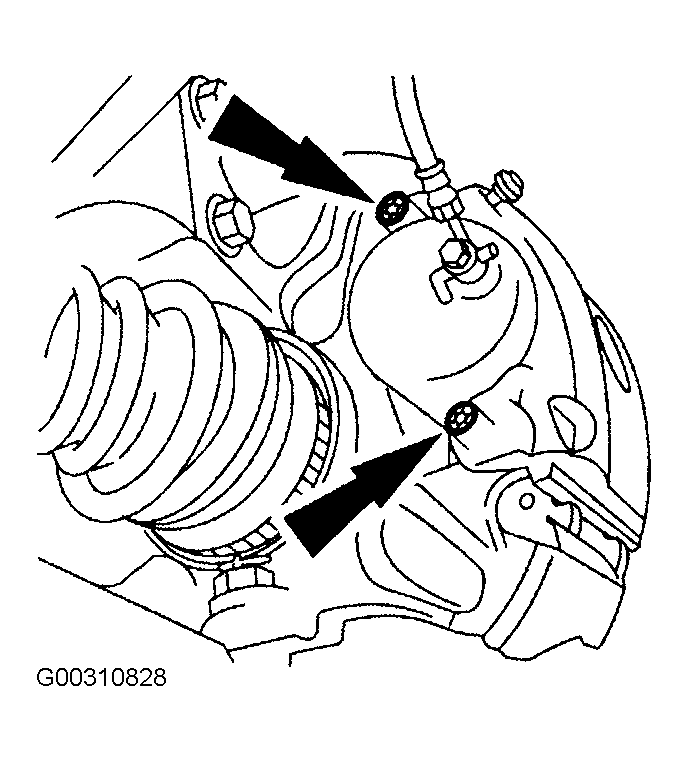

  2. Remove disc brake caliper locating pins. See Figure .
  3. Remove caliper and support caliper from the front strut and spring assembly using mechanics wire.
  4. Remove outboard disc brake pad. Remove inboard disc brake pad. See Fig 1 .

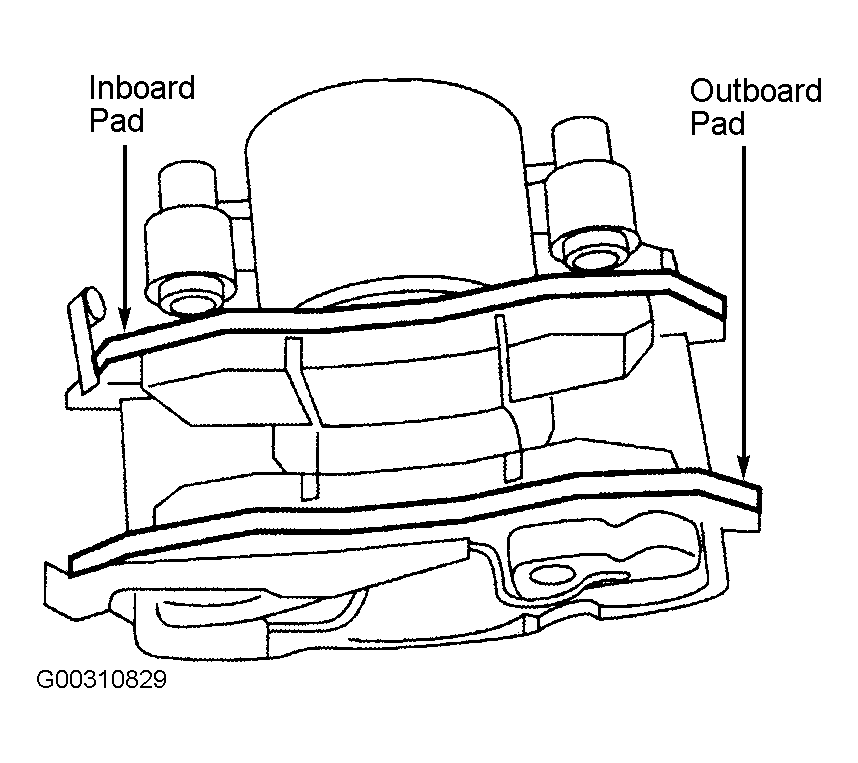

Fig 1: Identifying Inboard & Outboard Pads
G00310829Courtesy of FORD MOTOR CO.
