Cable Adjustment

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the vehicle in reverse and apply the brake pedal firmly several times.
  2. Raise and support the vehicle.
  3. Turn the cable adjustment nuts until the parking brake pedal stroke is within specification. See Fig 1 .

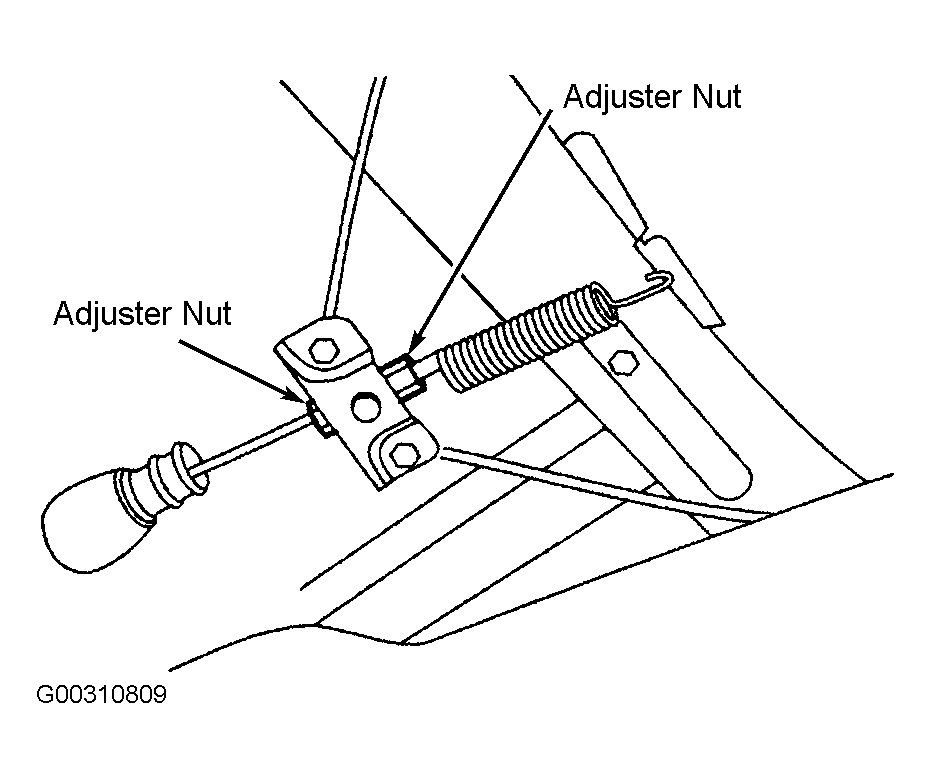

Fig 1: Identifying Parking Brake Cable Adjustment Nuts
G00310809Courtesy of FORD MOTOR CO.
