Rear Door Trim Panel

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RH side is shown. LH side is similar.

Remove the parts in the order listed in the following illustration and table.

To remove individual parts, only carry out the listed steps:

Part	Steps
Sliding door trim panel	1-5
Sliding door assist handle	1-7

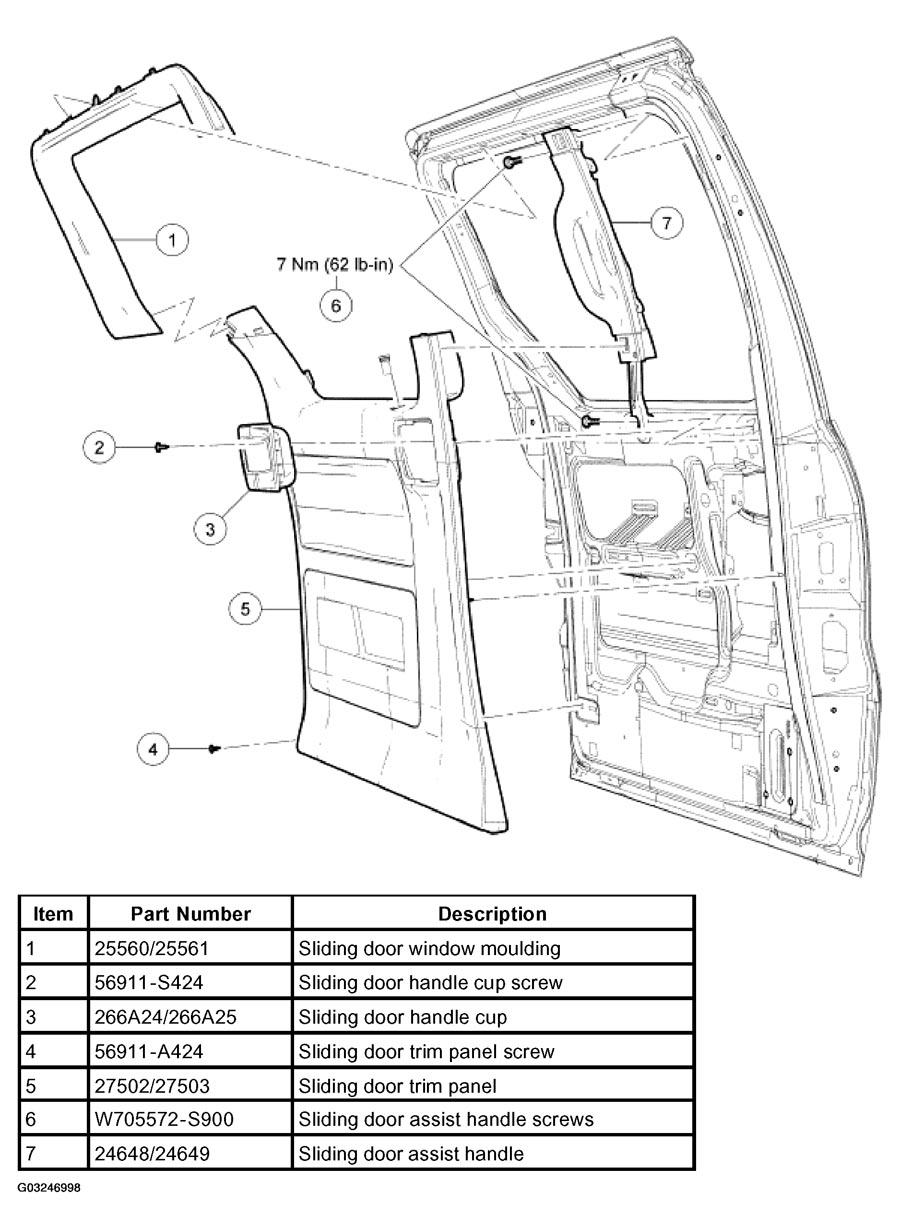

Fig 1: Removing Rear Door Trim Panel

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
