Windshield Washer Pump and Reservoir: Notes
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery. For additional information, Refer to BATTERY & CHARGING SYSTEM
- Remove the RF front wheel. For additional information, Refer to WHEEL AND TIRE -- FRONT .
- Position the RF splash shield aside. For additional information, Refer to FENDER .

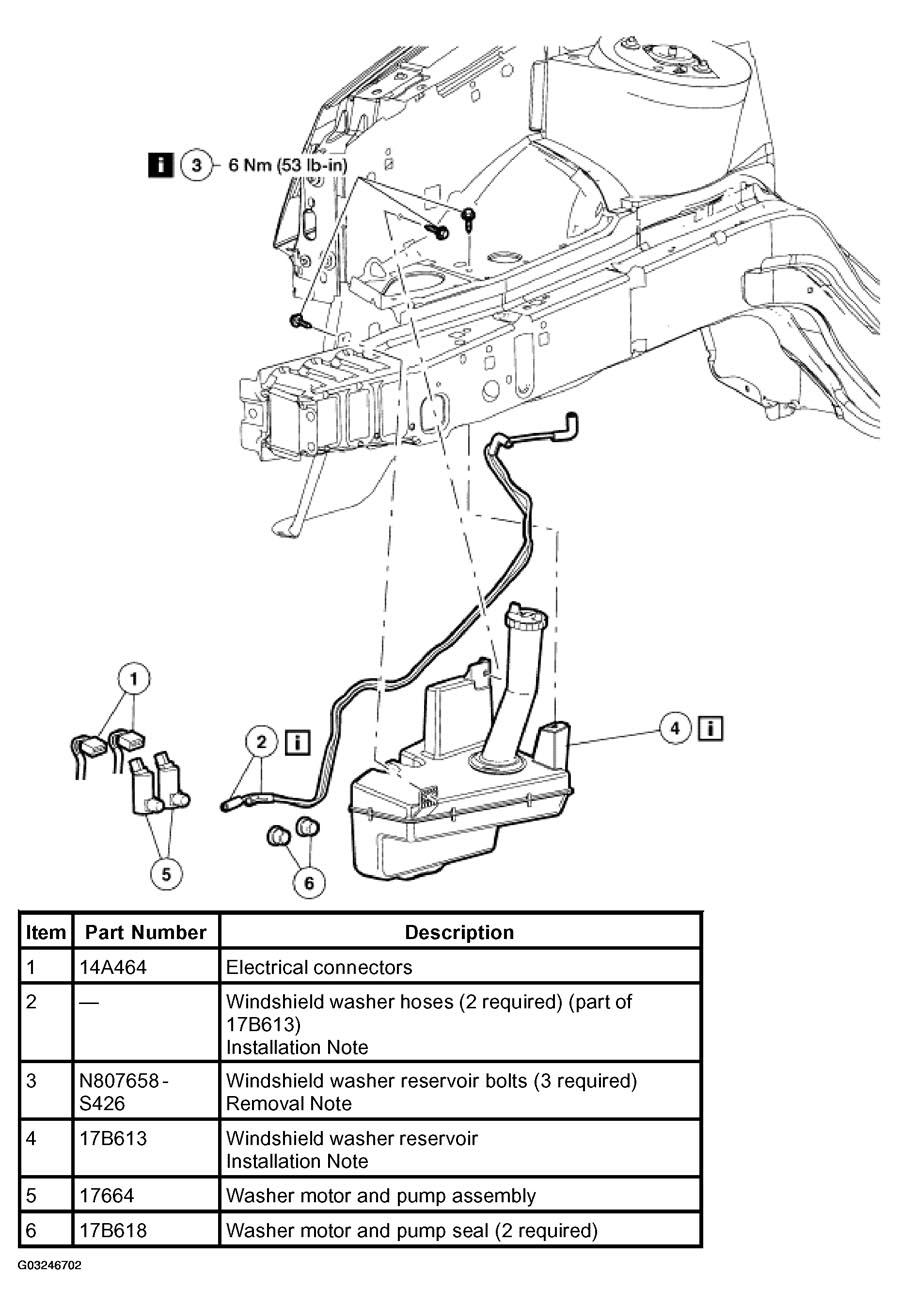

- Remove the parts in the order indicated in the following illustration.
- To install, reverse the removal procedure.
WARNING:
Windshield washer solution contains methanol, which is poisonous. Observe all cautions and warnings indicated on the label of the washer solution container.
CAUTION:
Do not make any electrical connections prior to filling the windshield washer reservoir. Do not operate the windshield washer pump prior to filling the windshield washer reservoir.
