Special Tool(s)

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

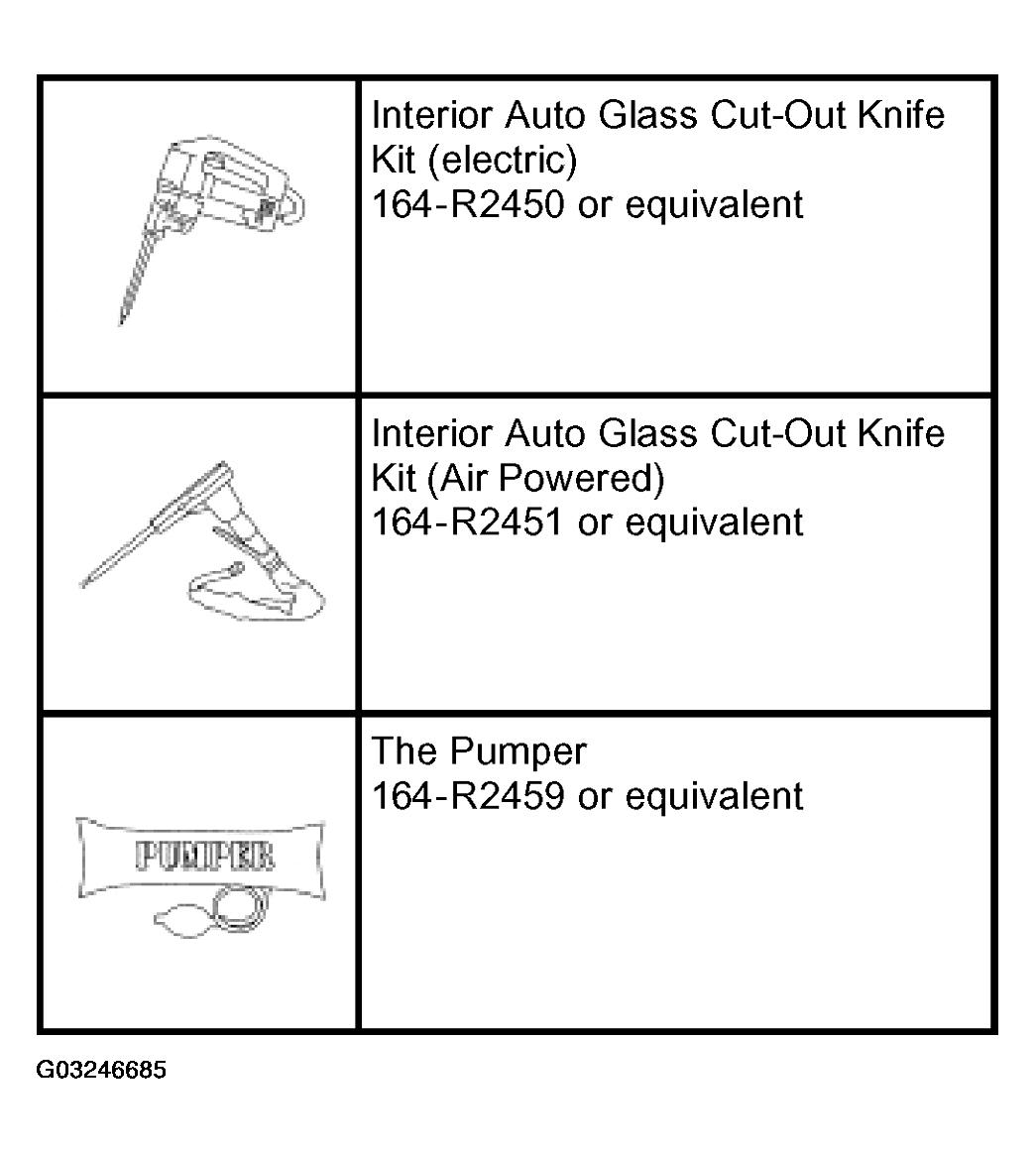

Fig 1: Identifying Special Tool(s)
G03246685Courtesy of FORD MOTOR CO.
MATERIAL SPECIFICATIONS

Item Specification
Urethane Metal Primer Essex U-413 WSB-M2G234-C
Urethane Glass Prep Essex U-401 WSB-M5B280-C
Urethane Glass Primer Essex U-402 WSB-M2G314-B
Urethane Adhesive Essex 400-HV WSB-M2G316-B
  1. Remove the cowl panel grille. For additional information, Refer to COWL PANEL GRILLE  .
  2. Remove the interior mirror. For additional information, Refer to INTERIOR MIRROR .
  3. Remove the LH and RH windshield side garnish mouldings. For additional information, Refer to INTERIOR TRIM PANELS .
  4. If equipped, remove the overhead console.
  5. Remove the sun visors.
  6. Remove the assist handles.
  7. Position the LH and RH weatherstrips aside.
  8. Lower the front portion of the headliner.
  9. Remove the parts in the order indicated in the following illustration.

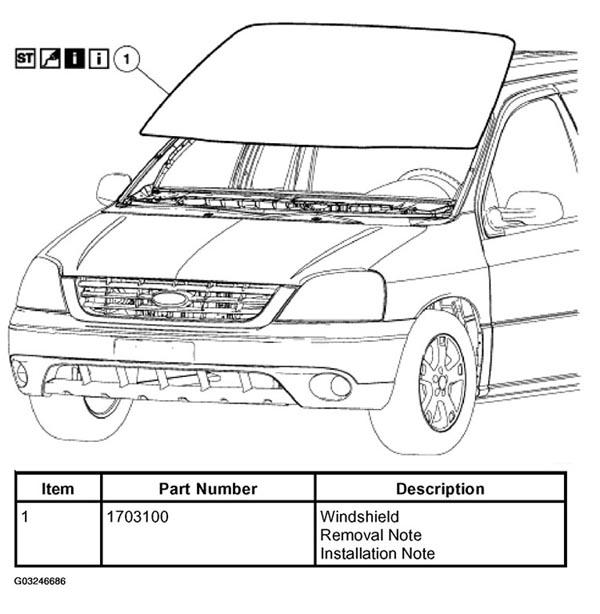

    Fig 2: Removing Windshield Glass
    G03246686Courtesy of FORD MOTOR CO.
  10. To install, reverse the removal procedure.
