Rear Window Wiper: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the liftgate trim panel. For additional information, Refer to LIFTGATE TRIM PANEL .
  2. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    Part Steps
    Rear wiper pivot arm 1, 2
    Wiper assembly module 1-6

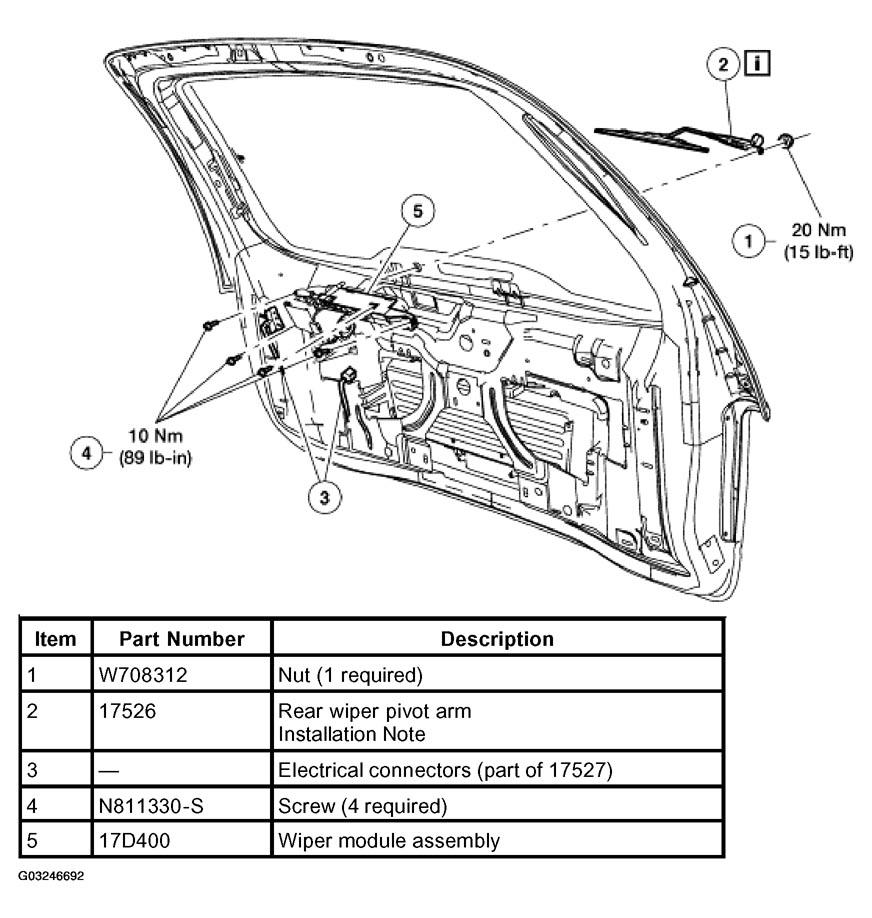

    Fig 1: Removing Rear Window Wiper
    G03246692Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
