Item 2: Rear Wiper Arm Installation Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Install the wiper seal on the inside of the glass, alining the indicator on the glass seal with the white dot on the window glass.

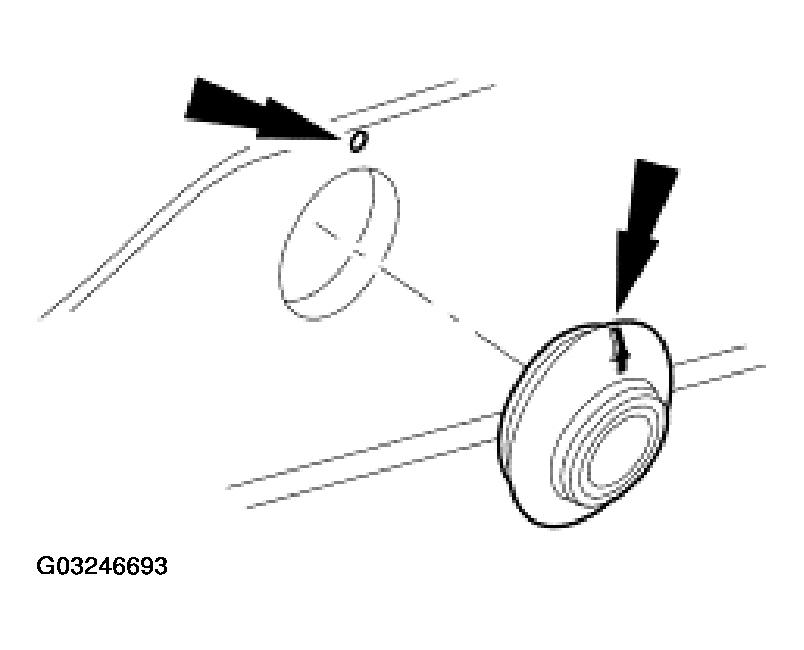

Fig 1: Installing Wiper Arm Seal

Courtesy of FORD MOTOR CO.

Install the wiper arm seal.

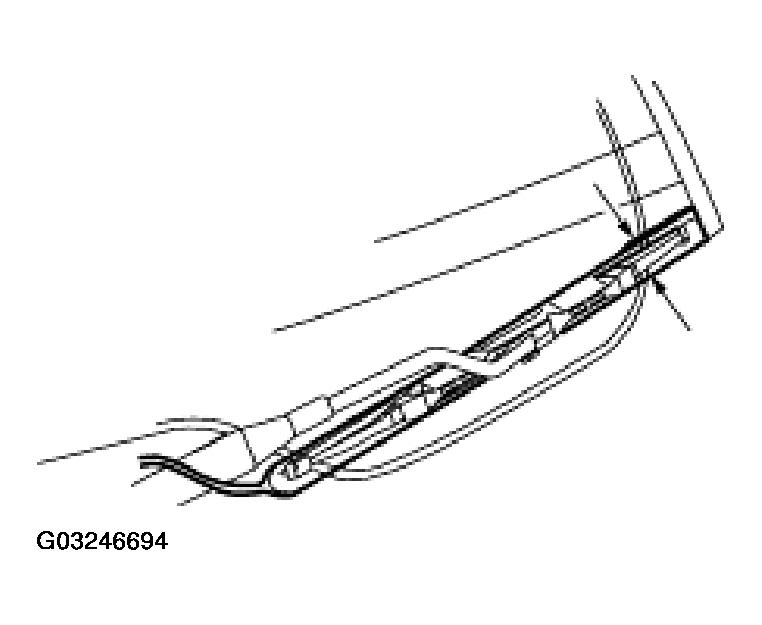

Cycle and park the rear windshield wiper.
- The wiper blade must rest between the defogger lines.
