Rear Quarter Window Glass: Notes

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS

Item Specification
Foam Butyl Obtain Locally WSB-M2G234-C
  1. Remove the rear quarter and C-pillar trim panels. For additional information, Refer to INTERIOR TRIM PANELS .
  2. Remove the parts in the order indicated in the following illustration.

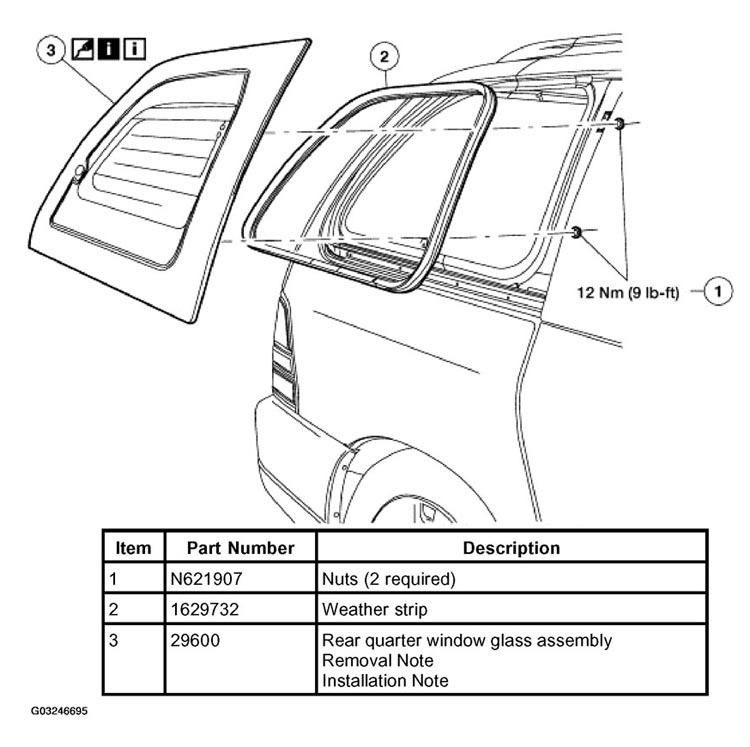

    Fig 1: Removing Rear Quarter Window Glass
    G03246695Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
