Rear Bumper: Notes
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

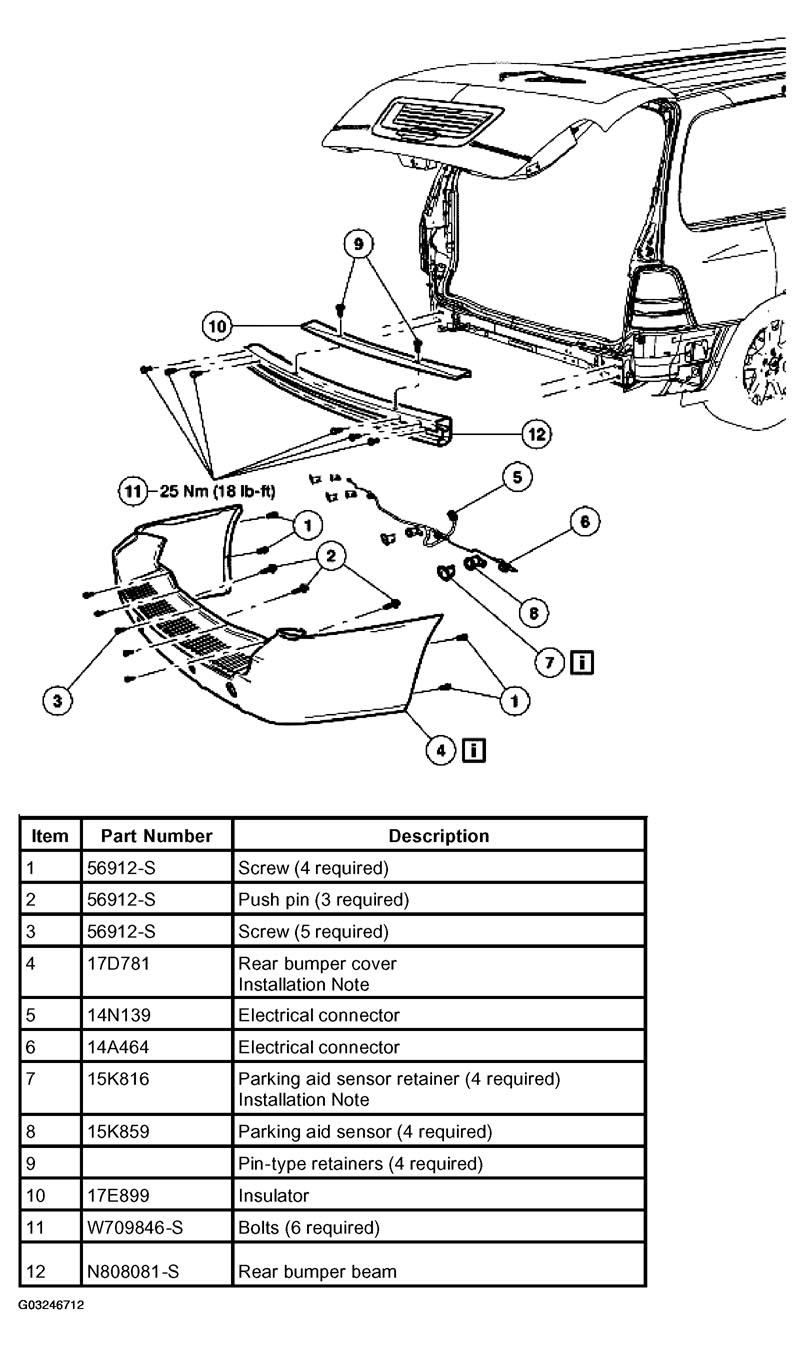

- Remove the parts in the order indicated in the following illustration and table.
To remove individual parts, only carry out the listed steps:
| Part |
Steps |
| Park aid sensor |
1-8 |
| Rear bumper cover |
1-5 |
| Rear bumper beam |
1-12 |
Courtesy of FORD MOTOR CO.
- To install, reverse the removal procedure.
