Removal And Installation: Mouldings: Notes
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

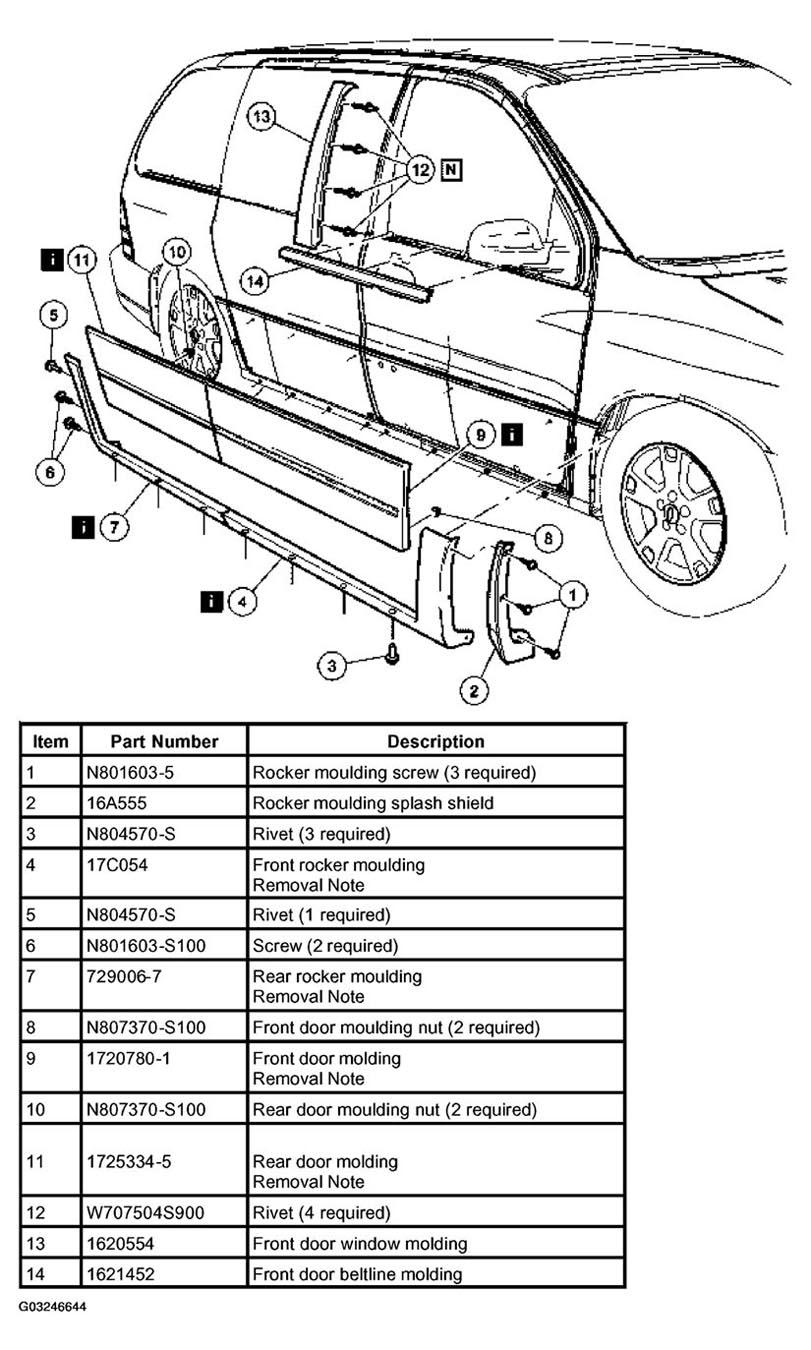

- Remove the parts in the order indicated in the following illustration and table.
To remove individual parts, only carry out the listed steps:
Part Steps Front rocker moulding 1-4 Rear rocker moulding 5-7 Front door moulding 8, 9 Sliding door moulding 10, 11 Front door beltline moulding 12-14 Front door window molding 12, 13 - To install, reverse the removal procedure.
