Item 1: Liftgate Window Glass Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear wiper motor. For additional information, Refer to REAR WINDOW WIPER .
  2. Disconnect the two rear window defrost electrical connectors.

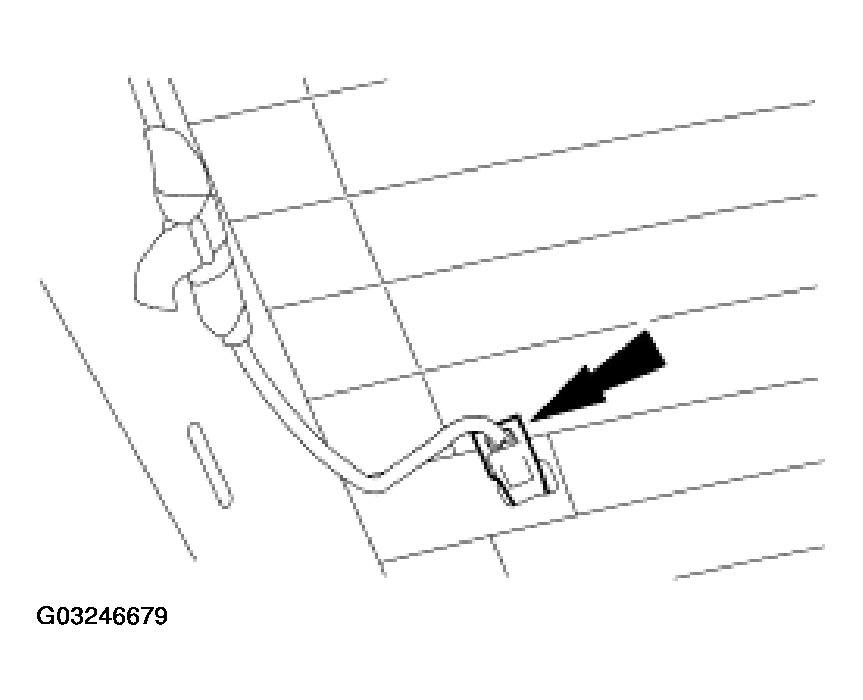

    Fig 1: Disconnecting Rear Window Defrost Electrical Connectors
    G03246679Courtesy of FORD MOTOR CO.
  3. Using a soft brush or vacuum, remove the dirt and foreign material from the pinch weld.
    WARNING: To prevent glass splinters from entering the eyes or cutting the hands, wear safety glasses and heavy gloves when cutting the glass from the vehicle.
    CAUTION: Care must be taken to avoid scratching the pinch weld.
  4. NOTE: Lubricate the existing urethane adhesive with water to aid the special tool while cutting.

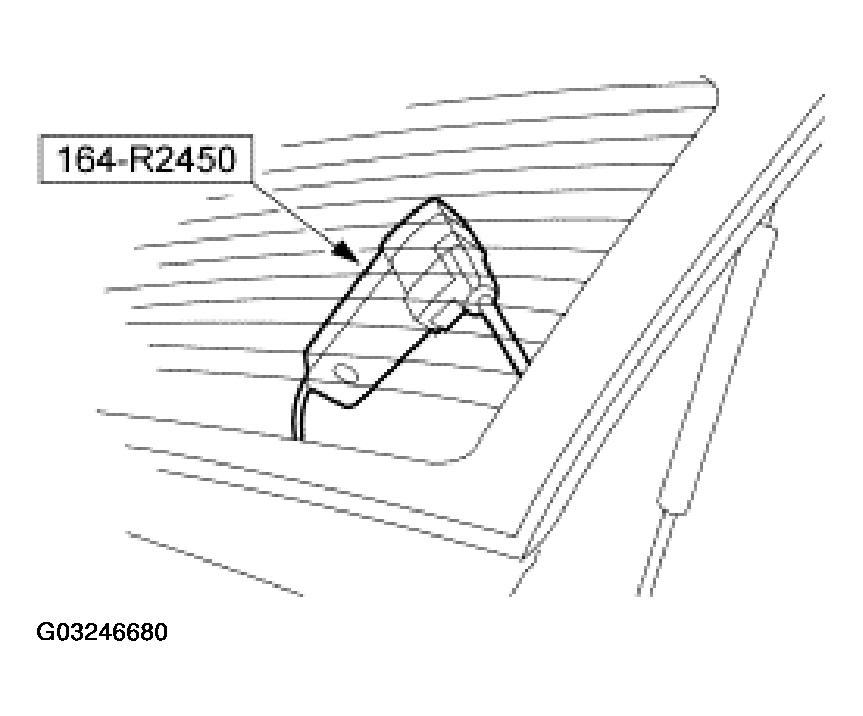

    Fig 2: Cutting Adhesive From Liftgate Window Glass
    G03246680Courtesy of FORD MOTOR CO.
  5. Using the special tool, cut the adhesive away from the liftgate window glass and remove the liftgate window glass.
  6. Using a soft brush or vacuum, remove the dirt and foreign material from the pinch weld.
