Item 5: Bumper Cover Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

Remove the pin-type retainers.

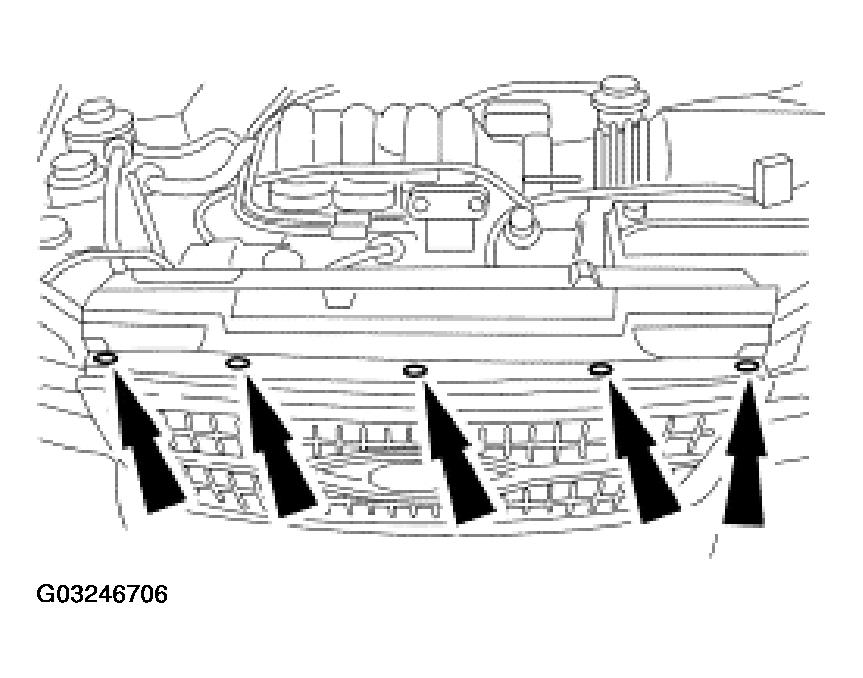

Fig 1: Removing Pin-Type Retainers
Courtesy of FORD MOTOR CO.
Release the two bumper cover locking tabs.

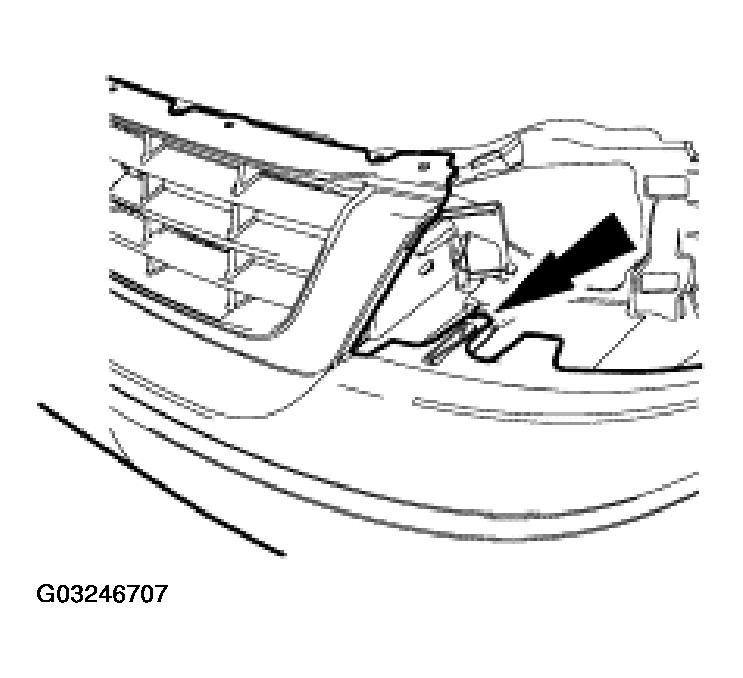

Fig 2: Releasing Bumper Cover Locking Tabs
Courtesy of FORD MOTOR CO.
Disconnect the fog lamp electrical connectors.

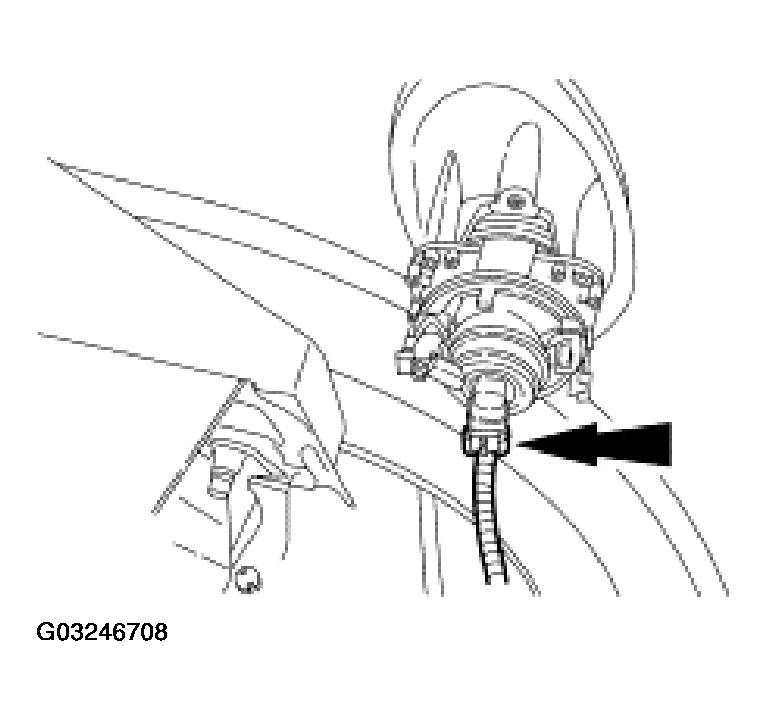

Fig 3: Disconnecting Fog Lamp Electrical Connectors
Courtesy of FORD MOTOR CO.
If equipped, disconnect the parking aid harness electrical connector.
If equipped with parking aid, transfer components as necessary.
