Windshield Washer Pump C137

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
WINDSHIELD WASHER PUMP C137

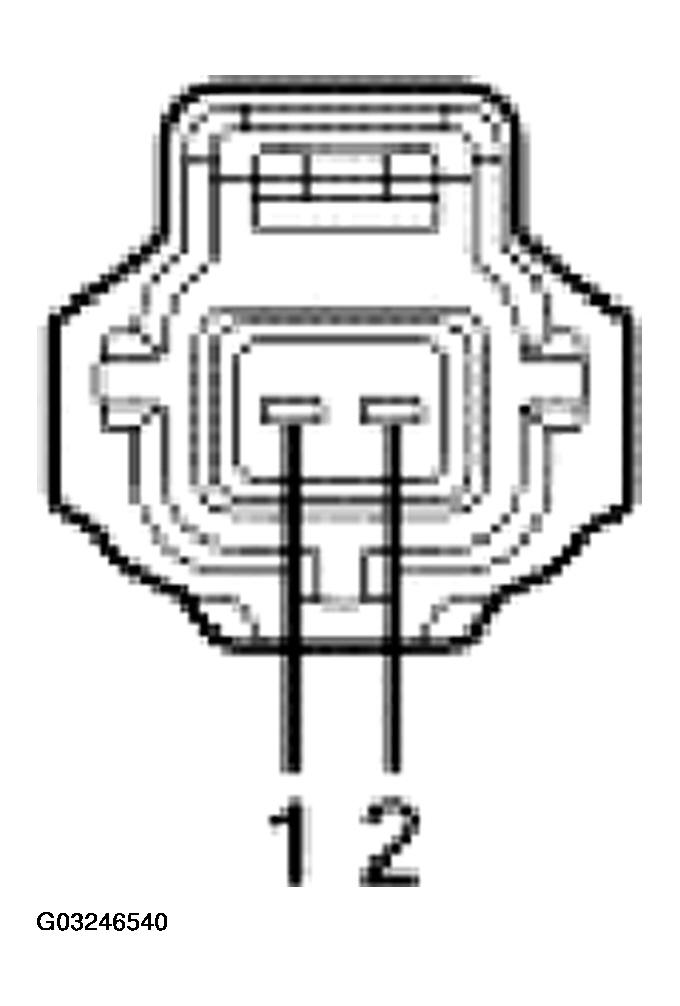

G03246540
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
1 941 (BK/WH) voltage feed from windshield wiper motor 10 volts or greater with the ignition switch in the ON position and the washer switch in the ON position. 5 ohms or less between the windshield wiper motor and the windshield washer pump connectors (both disconnected).
2 1205 (BK) ground 5 ohms or less to chassis ground.
