SJB C2280h

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
SJB C2280H

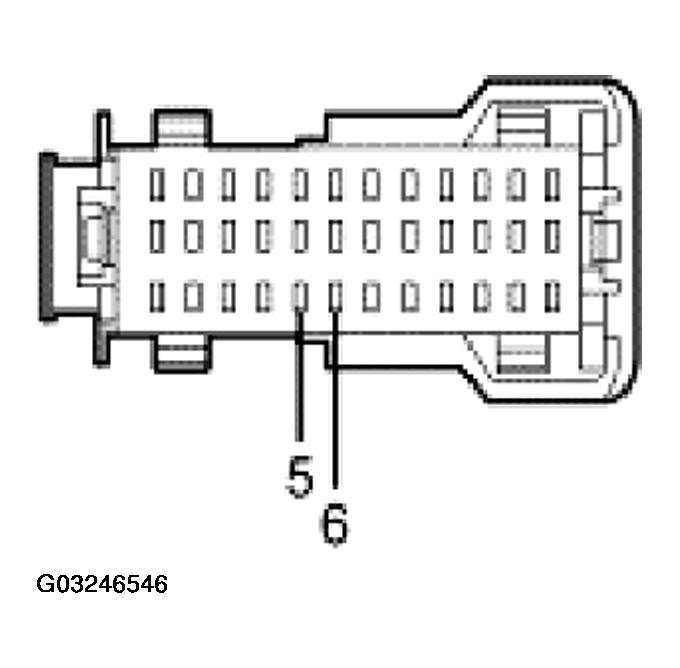

G03246546
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
5 406 (BN/WH) voltage feed to rear wiper motor 10 volts or greater with the ignition switch in the ACC or ON position.
6 65 (DG) voltage feed to windshield wiper motor 10 volts or greater with the ignition switch in the ACC or ON position.
