SJB C2280c

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
SJB C2280C

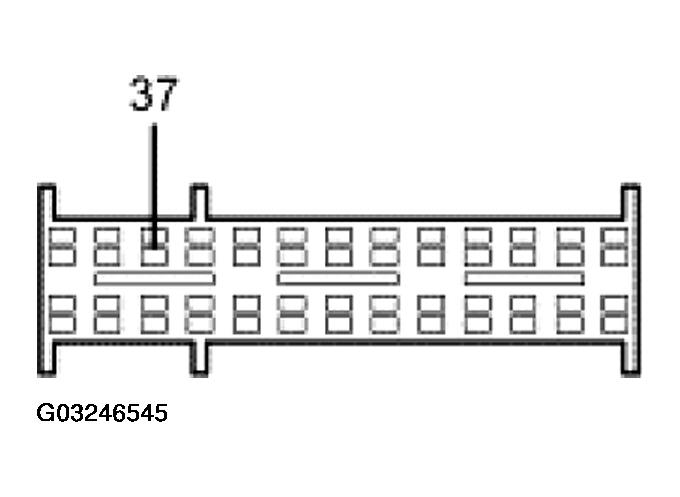

G03246545
Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
37 671 (LB) windshield wiper sense 5 ohms or less between the SJB and the windshield wiper motor connectors (both disconnected), 10,000 ohms or greater between circuit 671 (LB) and ground.
