Rear Washer Pump C1097
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

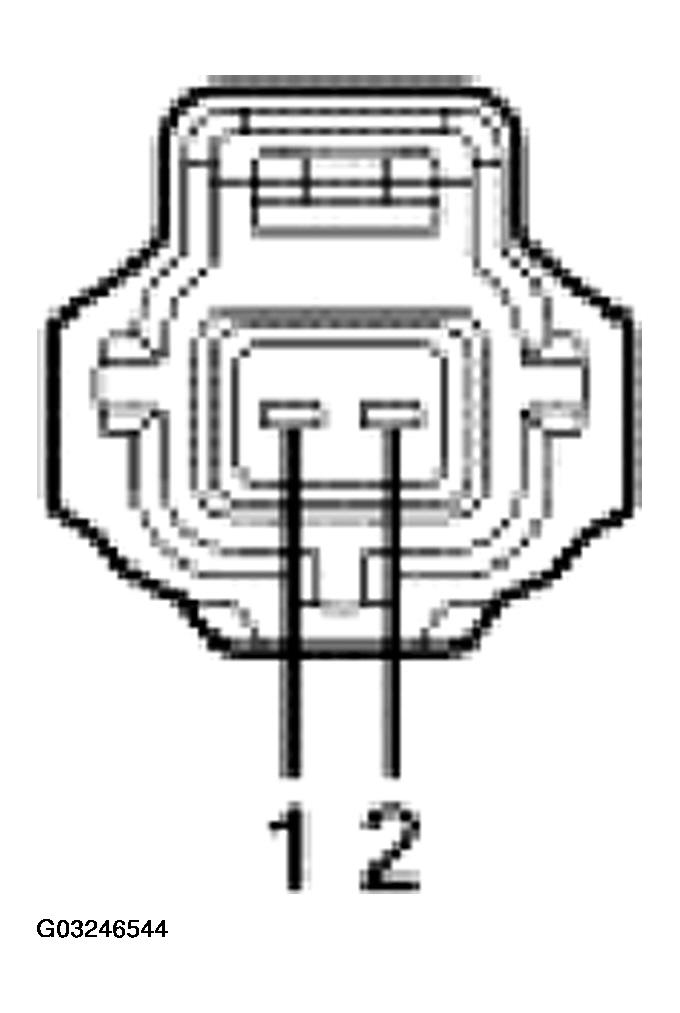

REAR WASHER PUMP C1097
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 946 (VT/LG) voltage feed from rear wiper motor | 10 volts or greater with the ignition switch in the ON position and the rear washer switch in the ON position. 5 ohms or less between the rear washer pump and the rear wiper motor connectors (both disconnected) |
| 2 | 1205 (BK) ground | 5 ohms or less to chassis ground. |
